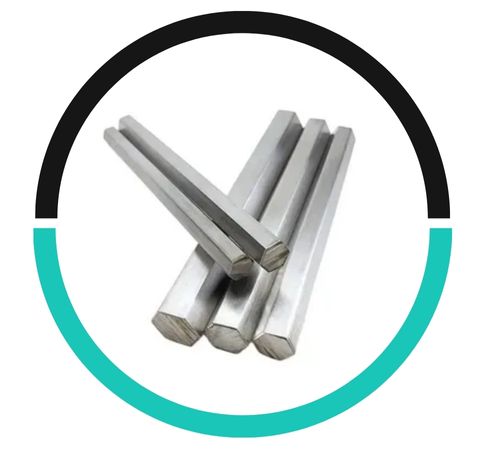

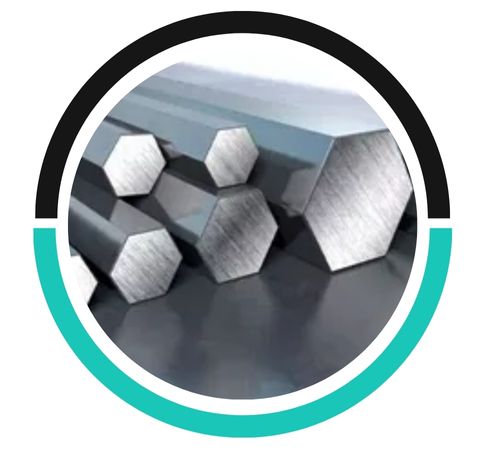

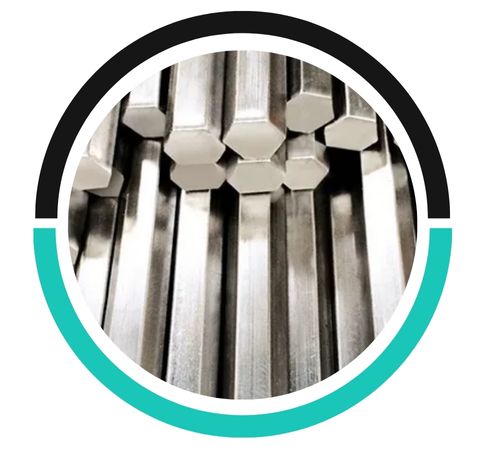

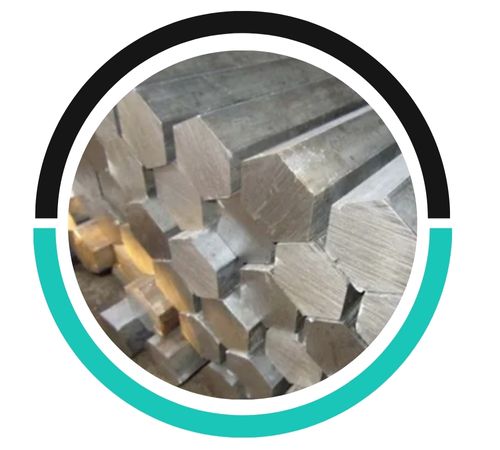

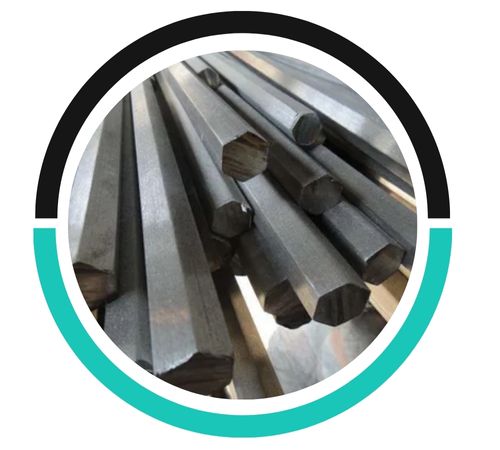

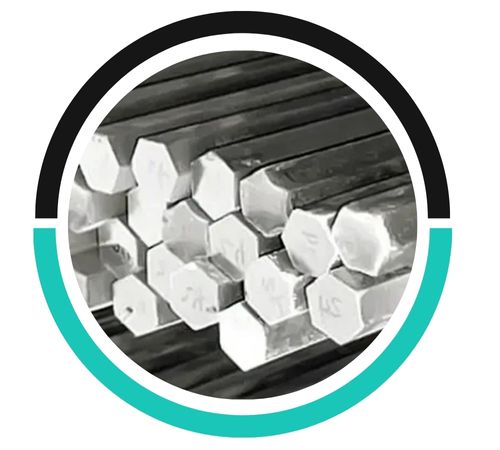

Sahil Metals, a well-respected manufacturer and supplier located in Riyadh, Saudi Arabia, has built a reputation for delivering top-notch stainless steel products that adhere to global industrial standards. One of their standout offerings is the Stainless Steel 410 Hex Bar, which is prized for its remarkable strength, wear resistance, and long-lasting durability. Crafted with precision, these hex bars are perfect for applications that demand toughness and a moderate level of corrosion resistance. Thanks to their versatility, Stainless Steel 410 Hex Bars from Sahil Metals are a reliable choice for engineering, mechanical, and industrial uses, ensuring performance and cost-effectiveness that make the company a trusted name in the region.
The Stainless Steel 410 Hex Bar is primarily made up of iron, with chromium content between 11.5% and 13.5%, along with carefully controlled amounts of carbon, manganese, silicon, phosphorus, and sulfur. Its martensitic structure gives it good hardness and moderate resistance to corrosion. On the mechanical side, Stainless Steel 410 boasts a tensile strength of 450–650 MPa, a yield strength of about 275 MPa, an elongation of 20%, and hardness reaching up to 200 Brinell. These well-balanced properties make Stainless Steel 410 Hex Bars ideal for applications that require durability, machinability, and a decent level of resistance to both atmospheric and chemical conditions.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A276, A479, ASTM A493
Length : Random, Fix & Cut Length
Size : 20MM to 150MM
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 410 | 0.15 | 11.5-13.5 | 1.00 | 0.75 | 0.040 | 0.030 | 1.00 |
| HEXAGONS | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.55 | 1.79 |
| 18 | 0.69 | 2.27 |
| 20 | 0.85 | 2.80 |
| 22 | 1.03 | 3.39 |
| 25 | 1.33 | 4.38 |
| 28 | 1.67 | 5.49 |
| 30 | 1.92 | 6.30 |
| 32 | 2.19 | 7.17 |
| 36 | 2.77 | 9.07 |
| 38 | 3.08 | 10.11 |
| 40 | 3.41 | 11.20 |
| 45 | 4.32 | 14.18 |
| 50 | 5.34 | 17.50 |
| 56 | – | – |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Stainless Steel 410 Hex Bars are commonly utilized in situations that call for high strength, toughness, and wear resistance. They’re frequently found in the production of pump shafts, bolts, screws, fasteners, and various machine parts. Additionally, they are used in turbine blades, valve components, cutlery, and equipment in the petrochemical industry. Their moderate corrosion resistance allows them to thrive in mildly corrosive environments, making them suitable for both industrial and engineering applications. With their adaptability and durability, Stainless Steel 410 Hex Bars have become a go-to choice in the mechanical, construction, and general manufacturing sectors.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
