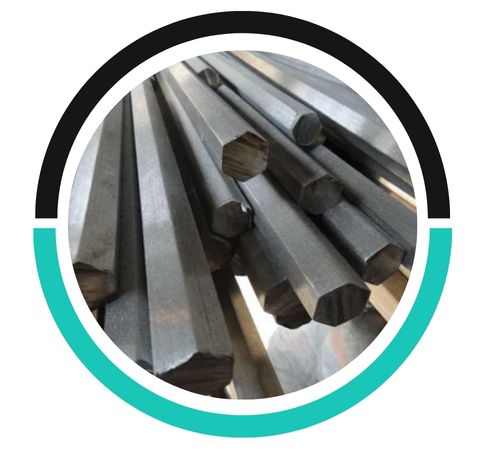

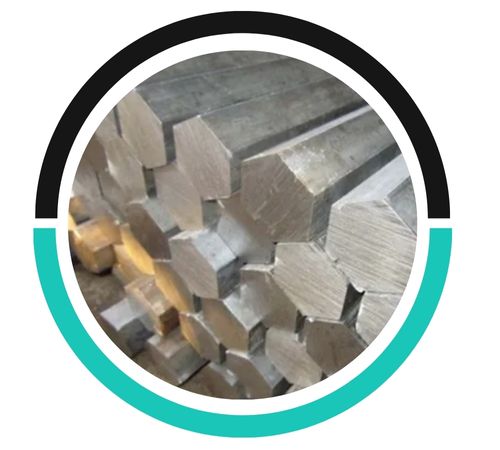

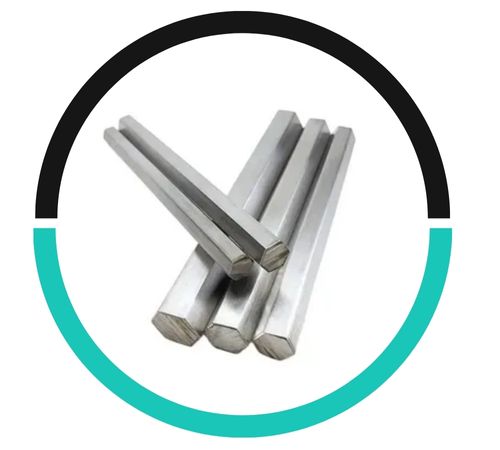

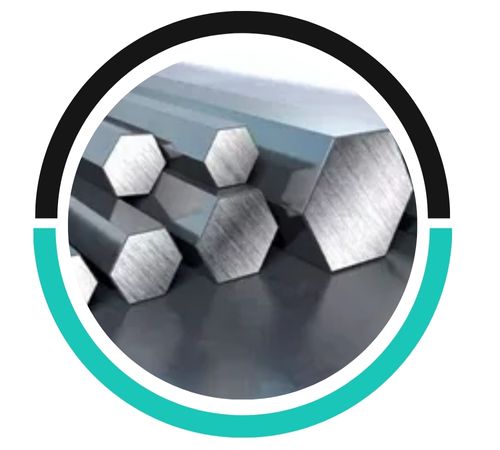

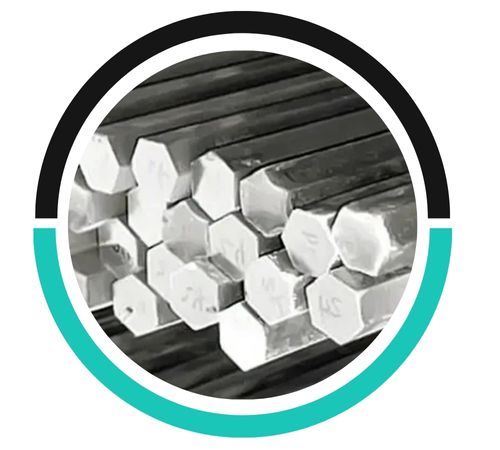

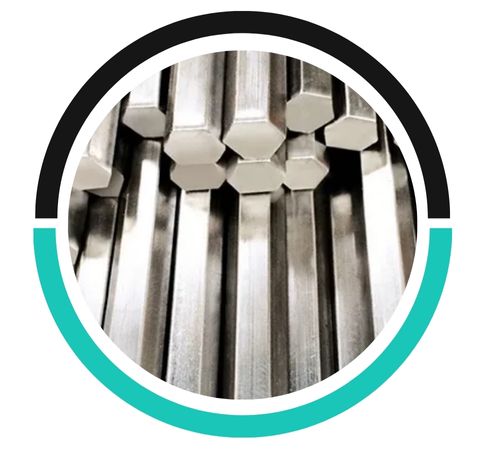

Sahil Metals, a top-notch manufacturer and supplier based in Riyadh, Saudi Arabia, is dedicated to providing high-quality stainless steel products that align with global standards. One standout item in their impressive lineup is the Stainless Steel 416 Hex Bar, which is well-known for its outstanding machinability, resistance to corrosion, and remarkable durability. Crafted using cutting-edge techniques, these hex bars are specifically designed for applications that require both precision and strength. Trusted by various industries, including automotive, mechanical, and industrial equipment, the Stainless Steel 416 Hex Bars from Sahil Metals guarantee reliability, consistent performance, and cost-effectiveness, making the company a go-to partner for stainless steel solutions in the region.
The Stainless Steel 416 Hex Bar is primarily made up of iron, with chromium (12–14%), manganese, phosphorus, sulfur, and silicon, along with carefully controlled amounts of carbon. The addition of sulfur boosts machinability while still providing moderate corrosion resistance. On the mechanical side, it boasts a tensile strength of 620–760 MPa, a yield strength of 275 MPa, an elongation of about 18%, and a hardness of up to 241 Brinell. This unique combination of machinability, strength, and toughness makes Stainless Steel 416 Hex Bars perfect for precision-engineered components where easy fabrication and durability are crucial.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A276, A479, ASTM A493
Length : Random, Fix & Cut Length
Size : 20MM to 150MM
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 416 | 0.15 | 14.0 – 12.0 | 1.25 | – | 0.06 | 0.15 | 1 |
| Element | Density, lb/in3 | Melting Point | Electrical Resistivity |
| SS 416 | 0.282 lbs/in3 7 .80 g/cm3 | 2700 – 2790 °F (1488 – 1530 °C) | At 70 °F (21 °C): 343.0 |
| HEXAGONS | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.55 | 1.79 |
| 18 | 0.69 | 2.27 |
| 20 | 0.85 | 2.80 |
| 22 | 1.03 | 3.39 |
| 25 | 1.33 | 4.38 |
| 28 | 1.67 | 5.49 |
| 30 | 1.92 | 6.30 |
| 32 | 2.19 | 7.17 |
| 36 | 2.77 | 9.07 |
| 38 | 3.08 | 10.11 |
| 40 | 3.41 | 11.20 |
| 45 | 4.32 | 14.18 |
| 50 | 5.34 | 17.50 |
| 56 | – | – |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
These hex bars are widely utilized in industries that demand high machinability and moderate corrosion resistance. They’re commonly found in the manufacturing of valves, pump shafts, nuts, bolts, screws, gears, and automotive parts. Their ability to endure wear and tear makes them ideal for mechanical applications, aerospace components, and industrial machinery. Additionally, these hex bars play a role in producing firearms, turbine blades, and other precision-engineered tools. With their durability and ease of machining, Stainless Steel 416 Hex Bars continue to be a vital material across engineering and manufacturing sectors.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Sahil Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Riyadh, Saudi Arabia
