Sahil Metals, a prominent manufacturer and supplier located in Riyadh, Saudi Arabia, is all about delivering top-notch metals and engineered solutions for a variety of industrial needs. They have an impressive lineup of products, including stainless steel, alloy steels, and specialty metals. One of their standout offerings is the Stainless Steel 202 Hex Bar/Rod, crafted to meet rigorous industry standards. Sahil Metals prides itself on providing exceptional material performance, prompt delivery, and tailored solutions for sectors like automotive, construction, petrochemical, and machinery, making them a trusted partner for industries that demand durable and high-performance stainless steel products.

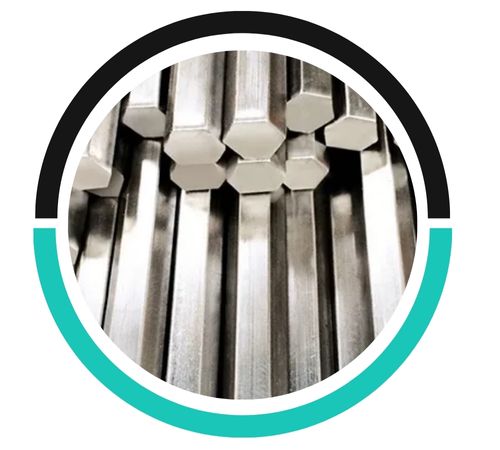

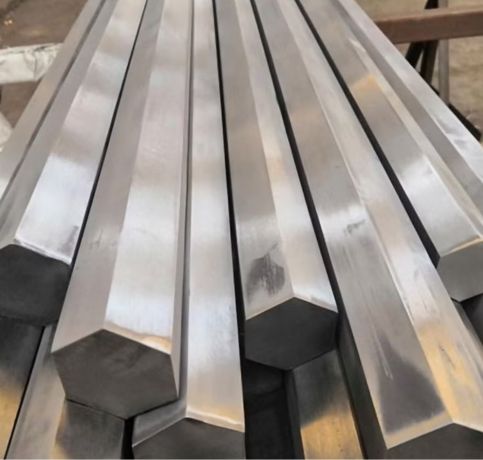

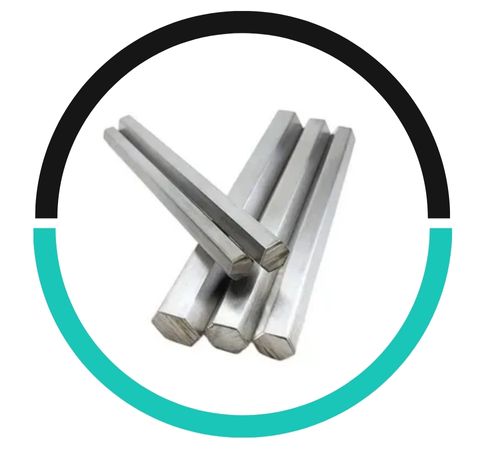

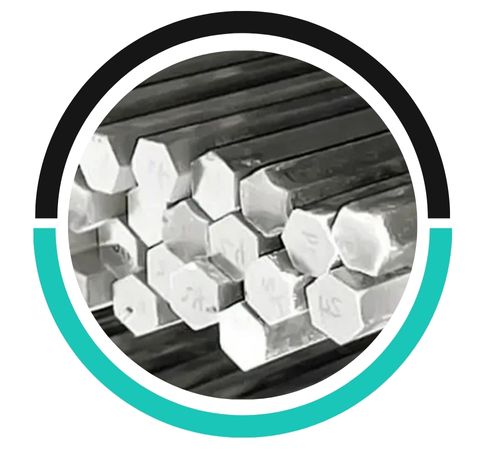

The Stainless Steel 202 Hex Bar/Rod is an austenitic stainless steel alloy that boasts a high content of manganese and nitrogen, serving as a budget-friendly alternative to 304 stainless steel. Its makeup includes chromium, nickel, and manganese, which together provide good tensile strength, ductility, and moderate resistance to corrosion. This material showcases excellent mechanical properties for general industrial use and holds up well in mildly corrosive environments, making it perfect for components that need both strength and formability.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A276, A479, ASTM A493
Length : Random, Fix & Cut Length
Size : 20MM to 150MM
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 202 | ≤ 0.15 | 17- 19 | 7.50-10 | 4-6 | ≤ 0.060 | ≤ 0.030 | ≤ 1 |
| Element | Tensile Strength | Yield Strength | Elongation |
| SS 202 | 515 MPa | 275 MPa | 40% |
| Element | Density, lb/in3 | Modulus of Elasticity, psi | Linear Expansion, 68-212°F, /°F | Thermal Conductivity, Btu/ft hr°F | Heat Capacity, Btu/lb°F | Electrical Resistivity, Ω-inch |
| SS 202 | 0.285 | 29 x 106 | 9.4 x 10-6 | 8.7 | 0.12 | 27.6 x 10-6 |
| HEXAGONS | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.55 | 1.79 |
| 18 | 0.69 | 2.27 |
| 20 | 0.85 | 2.80 |
| 22 | 1.03 | 3.39 |
| 25 | 1.33 | 4.38 |
| 28 | 1.67 | 5.49 |
| 30 | 1.92 | 6.30 |
| 32 | 2.19 | 7.17 |
| 36 | 2.77 | 9.07 |
| 38 | 3.08 | 10.11 |
| 40 | 3.41 | 11.20 |
| 45 | 4.32 | 14.18 |
| 50 | 5.34 | 17.50 |
| 56 | – | – |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
| Diameter or Width (mm) | Weight per meter | Sectional Area | Perimeter | |||
| Square (kg) | Round (kg) | Square (cm²) | Round (cm²) | Square (cm) | Round (cm) | |
| 5.0 | 0.20 | 0.15 | 0.25 | 0.20 | 2.0 | 1.57 |
| 5.5 | 0.24 | 0.19 | 0.30 | 0.24 | 2.2 | 1.78 |
| 6.0 | 0.28 | 0.22 | 0.36 | 0.28 | 2.4 | 1.88 |
| 7.0 | 0.38 | 0.30 | 0.49 | 0.38 | 2.8 | 2.20 |
| 8.0 | 0.50 | 0.39 | 0.64 | 0.50 | 3.2 | 2.51 |
| 9.0 | 0.64 | 0.50 | 0.81 | 0.64 | 3.6 | 2.83 |
| 10 | 0.73 | 0.63 | 1.00 | 0.79 | 4.0 | 3.14 |
| 11 | 0.95 | 0.75 | 1.21 | 0.95 | 4.4 | 3.46 |
| 12 | 1.13 | 0.89 | 1.44 | 1.13 | 4.8 | 3.77 |
| 14 | 1.54 | 1.21 | 1.96 | 1.54 | 5.6 | 4.40 |
| 16 | 2.01 | 1.58 | 2.56 | 2.01 | 6.4 | 5.03 |
| 18 | 2.54 | 2.00 | 3.24 | 2.54 | 7.2 | 5.65 |
| 20 | 3.14 | 2.47 | 4.00 | 3.14 | 8.0 | 6.28 |
| 22 | 3.80 | 2.98 | 4.84 | 3.80 | 8.8 | 6.91 |
| 25 | 4.91 | 3.85 | 6.25 | 4.91 | 10.0 | 7.85 |
| 28 | 6.15 | 4.83 | 7.84 | 6.16 | 11.2 | 8.80 |
| 32 | 8.04 | 6.31 | 10.24 | 8.04 | 12.8 | 10.05 |
| 36 | 10.17 | 7.99 | 12.96 | 10.18 | 14.4 | 11.31 |
| 40 | 12.56 | 9.86 | 16.00 | 12.57 | 16.0 | 12.57 |
| 45 | 15.90 | 12.49 | 20.25 | 15.90 | 18.0 | 14.14 |
| 50 | 19.62 | 15.41 | 25.00 | 19.64 | 20.0 | 15.71 |
| 56 | 24.62 | 19.34 | 31.36 | 24.63 | 22.4 | 17.59 |
| 63 | 31.16 | 24.47 | 36.69 | 31.17 | 25.2 | 19.79 |
| 71 | 39.57 | 31.08 | 50.41 | 39.59 | 28.4 | 22.31 |
| 80 | 50.24 | 39.46 | 64.00 | 50.27 | 32.0 | 25.13 |
Stainless Steel 202 Hex Bar and Rod is commonly used in manufacturing hardware, fasteners, and structural components. It finds applications in industries such as automotive, construction, food processing, and chemical equipment. Its resistance to corrosion and durability makes it ideal for components exposed to harsh environments, including marine and architectural applications, as well as in the production of machinery.
Stainless Steel 202 Hex Bars and rods are manufactured through processes like extrusion, forging, and cold drawing. The metal is heated, shaped, and then cooled to achieve desired dimensions. This process ensures uniformity, strength, and surface finish. Quality control during each stage guarantees durability, corrosion resistance, and precise tolerances in the final product.
Yes, Stainless Steel 202 Hex Bar/Rod can be welded easily using techniques like TIG (Tungsten Inert Gas) and MIG (Metal Inert Gas) welding. Preheating and proper filler materials are recommended to avoid cracking and maintain weld integrity.
You’ll find Stainless Steel 202 Hex Bars/Rods commonly used in fasteners, automotive parts, machinery components, and structural applications. Their blend of strength, durability, and decent corrosion resistance makes them a great fit for indoor settings and moderately corrosive environments. They’re also utilized in shafts, mechanical parts, and fabricated components where reliability, cost-effectiveness, and moderate corrosion resistance are key. Industries such as automotive, manufacturing, and construction count on 202 hex bars/rods for applications that require consistent performance and a long service life.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
