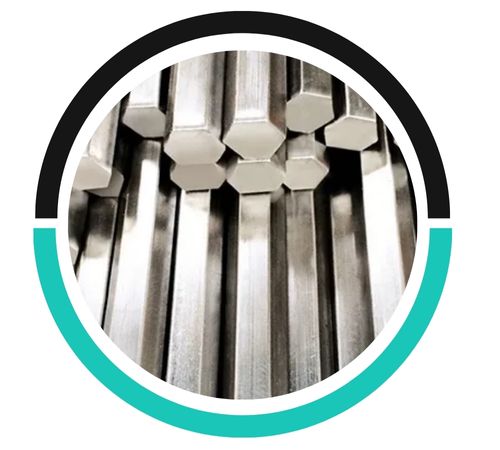

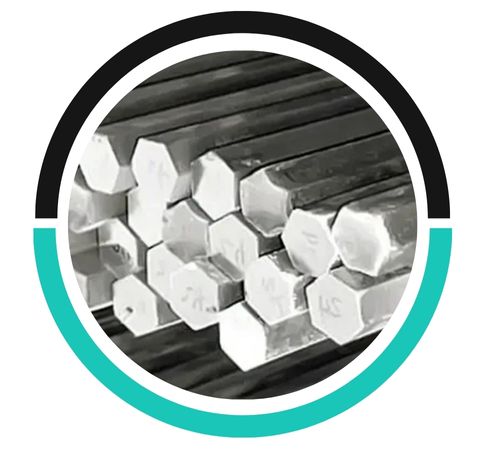

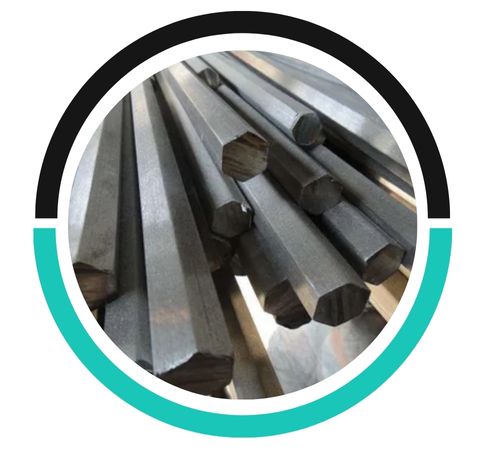

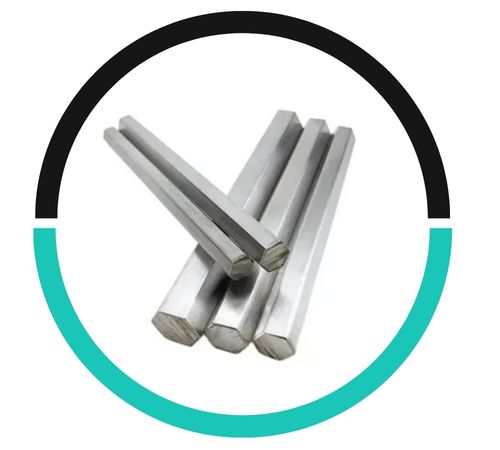

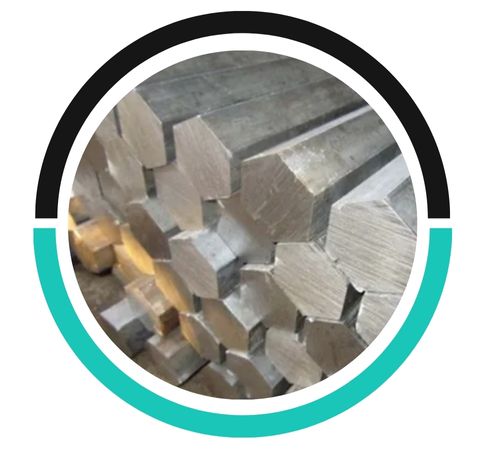

Sahil Metals is a well-respected manufacturer and supplier located in Riyadh, Saudi Arabia, known for its top-notch stainless steel products, particularly the high-quality Stainless Steel 317 Hex Bars/Rods. With years of experience and a strong dedication to excellence, the company provides products that not only meet international standards but also serve a diverse array of industrial needs. The SS 317 Hex Bars/Rods are celebrated for their outstanding corrosion resistance, durability, and impressive mechanical strength. Sahil Metals prides itself on precision engineering, dependable supply, and timely delivery, making it a go-to partner for industries in construction, chemical, marine, and engineering fields.
These Stainless Steel 317 Hex Bars/Rods are primarily made up of chromium (18–20%), nickel (11–15%), and molybdenum (3–4%), along with trace amounts of carbon, manganese, silicon, and phosphorus. This specific chemical makeup enhances their corrosion resistance, especially in acidic and chloride-rich environments. On the mechanical side, SS 317 Hex Bars/Rods boast a tensile strength of about 515 MPa, a yield strength of 205 MPa, and impressive elongation of up to 35%. They also maintain good hardness and toughness even at elevated temperatures, making them perfect for demanding applications that require high strength, durability, and a long service life.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A276, A479, ASTM A493
Length : Random, Fix & Cut Length
Size : 20MM to 150MM
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 317 | 0.08 max. | 18.0 – 20.0 | 2.00 max. | 11.0 – 14.0 | 0.045 max. | 0.03 max. | 1.00 max. |
| Element | Density | Melting Range,℃ | Tensile Strength | Yield Strength | Elongation | Hardness (Brinell) |
| SS 317 | 8 | 1454 ℃ | 515 | 205 | 40 | 217 |
| HEXAGONS | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.55 | 1.79 |
| 18 | 0.69 | 2.27 |
| 20 | 0.85 | 2.80 |
| 22 | 1.03 | 3.39 |
| 25 | 1.33 | 4.38 |
| 28 | 1.67 | 5.49 |
| 30 | 1.92 | 6.30 |
| 32 | 2.19 | 7.17 |
| 36 | 2.77 | 9.07 |
| 38 | 3.08 | 10.11 |
| 40 | 3.41 | 11.20 |
| 45 | 4.32 | 14.18 |
| 50 | 5.34 | 17.50 |
| 56 | – | – |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
You’ll find Stainless Steel 317 Hex Bars/Rods widely used in industries that need both corrosion resistance and high strength. They play a crucial role in chemical and petrochemical processing equipment, pulp and paper plants, textile dyeing machinery, and food processing sectors. Their ability to resist chloride and acidic conditions makes them particularly suitable for marine applications and heat exchangers. Moreover, SS 317 Hex Bars/Rods are also utilized in pharmaceutical equipment, condensers, and pollution control devices. Their versatility, durability, and capacity to endure harsh operating conditions make them a trusted choice across various industrial sectors.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
