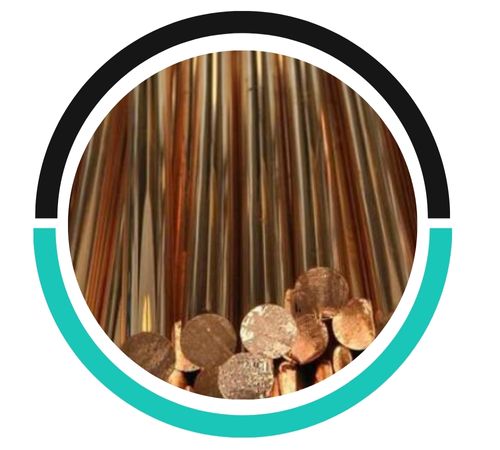

Copper Nickel Bars and Rods

Sahil Metals stands out as a premier manufacturer and supplier located in Riyadh, Saudi Arabia, with a strong focus on high-quality metal products like Copper Nickel Bars and Rods. Renowned for their unwavering commitment to quality and dependability, Sahil Metals serves a diverse array of industries, including marine, oil and gas, and power generation. Their Copper Nickel Bars and Rods are crafted using cutting-edge production methods and top-notch raw materials, ensuring exceptional performance, impressive corrosion resistance, and long-lasting durability. Thanks to their customer-first philosophy, Sahil Metals has earned a solid reputation throughout the Middle East for delivering top-tier metal solutions.

Cupro Nickel Bars Exporter in Dammam, Cupro Nickel Square Bar Stockist in Riyadh, Copper Nickel Hex Bar Supplier in Saudi Arabia, ASME SB111 Cupro Nickel Rectangular Rod Distributor in Saudi Arabia, Copper Nickel Alloy Hex Rod Stockist in Jeddah ,Cupro Nickel Square Rod Price in Dammam, Cu-Ni Bars in Saudi Arabia, Copper Nickel Forged Bar Manufacturer in Riyadh, Cu-Ni Polish Flat Bar Supplier in Saudi Arabia, CuNi Alloy Cold Drawn Round bar Supplier in United kingdom

Copper Nickel Cold Drawn Bars

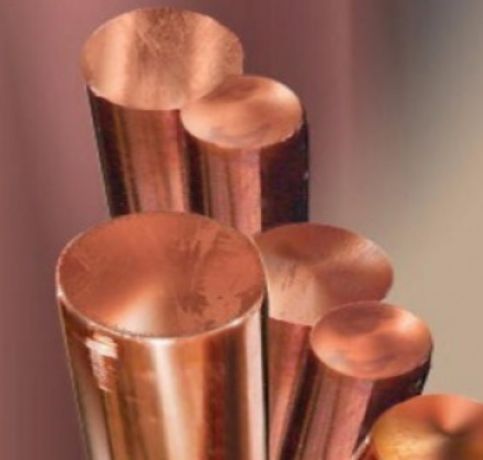

Cu-Ni Bright Rods

Cu-Ni Alloy Threaded Rods

Typically, Copper Nickel Bars and Rods are made from a blend of copper and nickel, often in ratios like 90/10 or 70/30, with additional elements such as iron and manganese to boost strength and corrosion resistance. These alloys boast remarkable mechanical properties, featuring tensile strength between 300–500 MPa, yield strength around 150 MPa, and elongation rates of 25–35%. They excel in resisting seawater corrosion, stress corrosion cracking, and erosion, making them perfect for demanding environments and high-performance applications in both industrial and marine contexts.

Cupro Nickel Bright Bar Manufacturer in Al Jubail, ASME SB 111 Cupro Nickel Alloy Flat Bar Supplier in Saudi Arabia, Cu-Ni Flat Bar Price List in Riyadh, Stockist of Copper Nickel Square Bar in Al Jubail, Cu-Ni Bars and Rods Exporter in Ras Al Khair, Cu-Ni Alloy Rectangular Bar Exporter in Saudi Arabia, Cu-Ni Hot Rolled Round Bar Exporter in Jeddah, Cu-Ni Cold Drawn Bars Manufacturer in Dammam, Cu-Ni Black Bar Stockists in Saudi Arabia, High Quality Copper Nickel Rods Dealer in Ras Al Khair

Copper Nickel Bars and Rods Specification

Standards	ASTM B151 / ASME SB151
Dimensions	EN, DIN, JIS, ASTM, BS, ASME, AISI all International Standards
Diameter	Outside Diameter in the range of 4mm to 500mm
Width	1m to 48″
Hex Bars	18mm – 57mm (11/16″ to 2-3/4″)
Square Bars	18mm – 47mm (11/16″ to 1-3/4″)
Flat Bars	1/2” to 10” in the thickness range of 2mm to 150mm
Wire Length	Max 12000 mm
Wire Diameter	5.5 – 400 mm
Length	1 to 6 Meters, Custom Cut Lengths
Types	Round, Square, Hex (A/F), Flat, Square, Rectangle, Billet, Ingot, Forging, Wire Bobbin, Wire Spool, Wire Rope, Spring Wires, Welding Wire, Coiled Wire Etc.

You Need Our Support, to Have Any Projects?

Test Certificate

Why Sahil Metals?

Packaging

Copper Nickel Bars and Rods Sizes

Metric		US Rods		ASTM/ Canadian		Japanese
Rods Size	Diam. (mm)	Rods Size	Diam. (Inch)	Rods Size	Diam. (mm2)	Rods Size	Diam. (mm)
5	5	#2	0.250	10M	100	6	6
5.5	5.5	#3	0.375	15M	200	10	10
6	6	#4	0.500	20M	300	13	13
7	7	#5	0.600	25M	500	16	16
8	8	#6	0.750	30M	700	19	19
9	9	#7	0.875	35M	1000	22	22
10	10	#8	1.000	45M	1500	25	25
11	11	#9	1.125	55M	2500	29	29
12	12	#10	1.250			32	32
14	14	#11	1.375			35	35
16	16	#12	1.500			38	38
18	18	#13	1.600			41	41
20	20	#14	1.750			44	44
22	22	#15	1.875			48	48
25	25	#16	2.000			51	51
28	28	#18	2.250			57	57
32	32
36	36
40	40
44	44
50	50

Copper Nickel Bars and Rods Weight Chart

Size	Kgs / Foot	Kgs / Mtr	Size	Kgs / Foot	Kgs / Mtr	Size	Kgs / Foot	Kgs / Mtr
3mm	0.017	0.055	20mm	0.753	2.470	3″	10.900	35.762
1/8″	0.019	0.062	22mm	0.908	2.979	3-1/4″	12.800	41.996
5/32″	0.029	0.095	7/8″	0.926	3.038	3-1/2″	14.850	48.772
4mm	0.030	0.098	24mm	1.080	3.543	3-3/4″	17.001	55.780
3/16″	0.043	0.141	25mm	1.180	3.871	4″	19.306	63.340
5mm	0.047	0.154	1″	1.210	3.970	4-1/4″	21.908	72.249
7/32″	0.058	0.190	26mm	1.271	4.170	4-1/2″	24.4487	80.340
6mm	0.068	0.223	27mm	1.368	4.490	4-3/4″	27.366	90.249
1/4″	0.076	0.249	1-1/8″	1.534	5.033	5″	30.461	99.940
7mm	0.091	0.298	30mm	1.691	5.548	5-1/2″	36.690	121.000
5/16″	0.118	0.387	1-1/4″	1.924	6.349	6″	43.860	143.900
8mm	0.120	0.398	32mm	1.894	6.314	6-1/2″	51.093	167.630
9mm	0.152	0.498	1-3/8″	2.303	7.550	7″	59.432	196.000
3/8″	0.170	0.557	35mm	2.390	7.553	7-1/2″	68.226	225.000
10mm	0.189	0.620	36mm	2.438	7.999	8″	77.586	254.55
11mm	0.228	0.748	38mm	2.792	8.903	10″	121.048	397.140
7/16″	0.232	0.761	1-1/2″	2.715	8.951
12mm	0.271	0.889	40mm	3.009	9.872
1/2″	0.303	0.994	1-5/8″	3.200	10.449
13mm	0.318	1.043	1-3/4″	3.712	12.179
14mm	0.368	1.207	45mm	3.807	12.555
9/16″	0.383	1.256	1-7/8″	4.260	13.977
15mm	0.424	1.391	48mm	4.330	14.205
5/8″	0.473	1.551	50mm	4.698	15.414
16mm	0.481	1.578	2″	4.848	15.906
17mm	0.543	1.791	2-1/8″	5.475	17.963
11/16″	0.573	1.880	2-1/4″	6.135	20.128
18mm	0.610	2.001	60mm	6.768	22.205
3/4″	0.682	2.237	2-3/8″	6.838	22.435
			2-1/2″	7.576	24.856
			2-5/8″	8.354	27.409
			2-3/4″	9.169	30.083

Modern Equipments

Expert Engineers

Well Maintained

Efficient Factories

Copper Nickel Bars and Rods Types

Cu-Ni Hex Bar Dealer in Riyadh, Copper Nickel Alloy Cold Drawn Round bar Supplier in Al Jubail, Copper Nickel Alloy Hex Bar Manufacturer in Ras Al Khair, ASTM B151 Copper Nickel Forged Rods Supplier in Jeddah, Cupronickel Alloy Rectangle Bar Size Chart, Copper Nickel Alloy Solid Rod Price in Dammam, Copper Nickel Square Bars and Rods Supplier in Saudi Arabia, ASME SB151 Cu-Ni Half Round Bars Stockist in Ras Al Khair, Cupronickel Threaded Bar Supplier in Riyadh

Frequently Asked Questions (FAQ)

What Are The Different Types Of Copper Nickel Bars and Rods Configurations Available?

Copper-nickel bars and rods are available in various configurations, including round, square, hexagonal, and flat shapes. They come in different sizes, lengths, and grades, such as 90/10 and 70/30 Cu-Ni alloys.

Can Copper Nickel Bars and Rods Be Recycled After Use?

Yes, copper-nickel bars and rods are highly recyclable. Their alloys retain valuable properties after recycling, making them an environmentally friendly choice for reuse in various industrial and manufacturing applications.

Are Copper Nickel Bars and Rods Suitable For Hygienic And Sanitary Applications?

Yes, copper-nickel bars and rods are suitable for hygienic and sanitary applications due to their corrosion resistance, antimicrobial properties, and ease of cleaning, making them ideal for food processing and medical equipment.

Copper Nickel Bars and Rods Uses

In marine settings, Copper Nickel Bars and Rods are extensively utilized for shipbuilding, seawater piping systems, and offshore oil platforms, thanks to their outstanding resistance to corrosion and biofouling. They also find applications in power plants, condensers, heat exchangers, and desalination units, where their superior thermal conductivity and durability shine. In the chemical and petrochemical sectors, these bars and rods are essential for crafting components that endure harsh conditions, ensuring reliable and long-lasting performance. Their adaptability and resilience make them ideal for a wide range of structural and functional uses.

Our Products

Other Products

Other Material

If You Are Looking To Buy High Quality

We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
