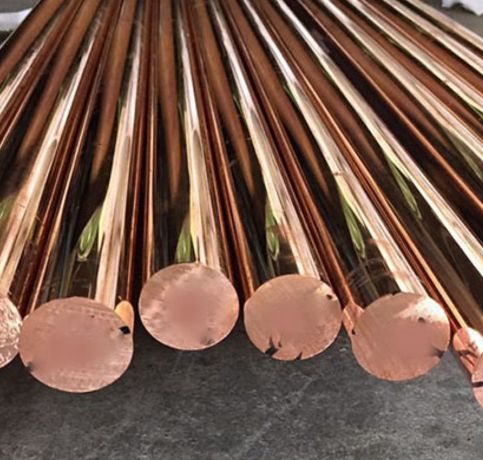

Sahil Metals, based in Riyadh, Saudi Arabia, stands out as a top-notch manufacturer and supplier of premium metal products, with a special focus on Copper Nickel Bright Bars. Known for their precision engineering and durability, Sahil Metals has built a solid reputation across various industries, including marine, oil & gas, and power generation. Their Copper Nickel Bright Bars are crafted from high-quality alloys and utilize cutting-edge manufacturing techniques, ensuring a fantastic surface finish, impressive corrosion resistance, and robust mechanical strength. Sahil Metals is dedicated to providing dependable and long-lasting metal solutions that cater to the specific needs of critical industrial applications.
These Copper Nickel Bright Bars are primarily composed of copper and nickel alloys, typically in 90/10 or 70/30 ratios. They also contain trace amounts of iron and manganese to boost their strength and resistance to corrosion. With tensile strength ranging from 300 to 500 MPa and yield strength between 100 to 250 MPa, they boast excellent mechanical properties. Their elongation rate falls between 25% and 35%, which contributes to their ductility and toughness. Thanks to their outstanding resistance to seawater corrosion, stress corrosion cracking, and high-temperature conditions, they are perfect for demanding industrial and marine applications.
Specification : EN, DIN, JIS, ASTM, BS, ASME, AISI
Standard Specification : ASTM B111 / ASME SB111
Size : 15NB to 150NB IN
Diameter : 3.17mm to 350mm diameter
Length : 100 mm to 3000 mm Long & Above
Tolerance : H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements
Finish : Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish
Form : Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc
Surface : Hot Rolled Pickled or Sand Blasting Finished, Cold Drawn, Bright, Hairline
Condition : Cold Drawnd Pulished Cold Drawn Centreless Ground & Polished
| Grade | Mn | Cu | Pb | Fe | Ni | Zn |
|---|---|---|---|---|---|---|
| 90/10 | 1.0 max | 88.6 min | 0.5 max | 1.8 max | 9-11 max | 1 max |
| 70/30 | 1 max | 65.0 min | 0.5 max | 0.4-1.0 | 29-33 | 1 max |
| Grade | Melting point | Density | Tensilestrength | Elongation | Yieldstrength(0.2%Offset) |
|---|---|---|---|---|---|
| 90/10 | 2260°F | 8.8g/cm3 | 50000 PSi | 30% | 20000PSi |
| 70/30 | 2260°F | 0.323 lb/in3 at 68°F | 50000 PSi | 30% | 20000PSi |
| Grade | UNS | Werkstoff Nr. |
| 90/10 | C70600 | 2.0872 |
| 70/30 | C71500 | 2.0882 |
| Bar Diameter (mm) | Weight (kg/m) |
|---|---|
| 6 | 0.22 |
| 8 | 0.39 |
| 10 | 0.62 |
| 12 | 0.89 |
| 16 | 1.58 |
| 20 | 2.47 |
| 25 | 3.85 |
| 32 | 6.31 |
| 40 | 9.86 |
| 45 | 12.5 |
| 50 | 15.4 |
| 60 | 22.2 |
| 65 | 26.0 |
| 75 | 34.7 |
| 90 | 49.9 |
| 100 | 61.6 |
Yes, Copper Nickel bright bars are highly customizable in terms of dimensions, lengths, and surface finishes to meet specific industry requirements, providing tailored solutions for various applications and projects.
In the marine sector, Copper Nickel Bright Bars are commonly used for propeller shafts, pump components, valve parts, and seawater piping systems. Their remarkable corrosion resistance makes them ideal for offshore platforms, desalination plants, and shipbuilding projects. Additionally, these bars find applications in heat exchangers, condensers, and chemical processing equipment, where durability, conductivity, and resistance to biofouling are essential. With their smooth surface finish and excellent machinability, Copper Nickel Bright Bars are perfectly suited for both structural and functional components that face harsh and corrosive environments.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
