Sahil Metals, located in Riyadh, Saudi Arabia, stands out as a top-notch manufacturer and supplier of high-quality metal products, catering to a diverse array of industries with their exceptional stainless steel solutions. Renowned for their precision, reliability, and commitment to international standards, Sahil Metals focuses on Stainless Steel 316H Bars and Rods. These high-carbon stainless steel offerings boast remarkable strength, heat resistance, and corrosion resistance, making them perfect for high-temperature and high-pressure settings. Sahil Metals provides robust and trustworthy materials tailored for sectors like petrochemical, power generation, construction, and marine applications throughout the region.
Stainless Steel 316H Bars and Rods are enhanced versions of the 316 grade, specifically engineered for greater strength at elevated temperatures. Their makeup includes 16–18% chromium, 10–14% nickel, 2–3% molybdenum, and a higher carbon content (0.04–0.10%) compared to 316/316L. These bars deliver a tensile strength of around 515 MPa, yield strength of 205 MPa, and an elongation of about 40%. The added carbon content boosts creep resistance and mechanical strength, making 316H an excellent choice for pressure vessels, boilers, and structural applications in heat-intensive environments.
Standard : EN, DIN, JIS, ASTM, BS, ASME, AISI
Specification : ASTM A276, A479 / ASME SA276, SA479
Hex Bars : 18mm – 57mm (11/16″ to 2-3/4″)

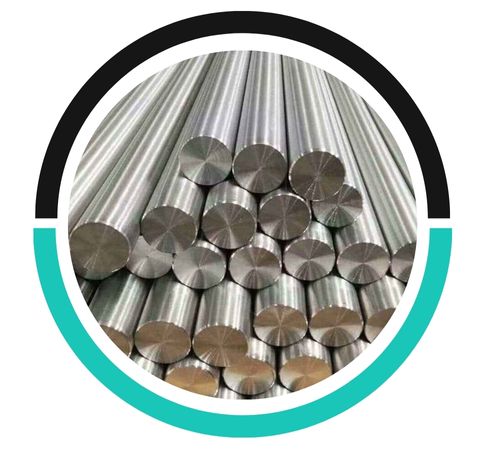

Bright Bars : Outside Diameter in the range of 4mm to 100mm

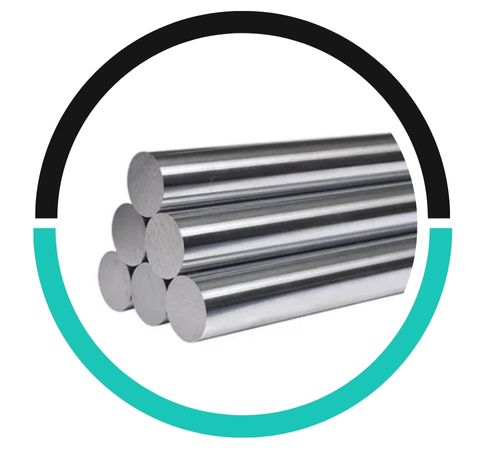

Round Bars : Outside Diameter in the range of 4mm to 500mm
Form : Round, Square, Hex (A/F), Rectangle Etc.

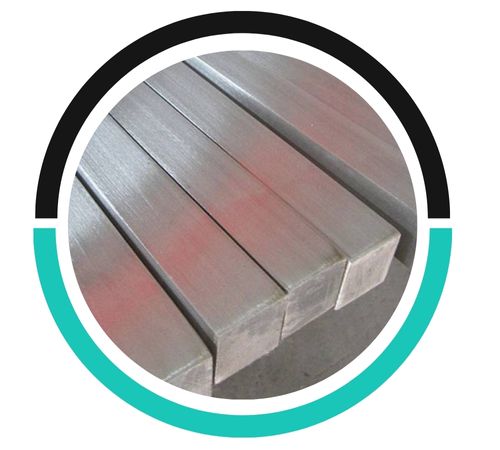

Square Bars : 18mm – 47mm (11/16″ to 1-3/4″)
Length : 1 to 6 Meters, Custom Cut Lengths
Finish : Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316h | 0.08 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 | 67.845 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS |
| SS 316h | – | S31609 |
Stainless Steel 316H has a higher carbon content than regular 316, which provides improved strength and makes it ideal for high-temperature applications. It can withstand higher stress and heat, making it suitable for demanding industries like petrochemical and power generation.
Yes, Stainless Steel 316H is highly resistant to corrosion, especially in chloride-rich and high-temperature environments. The addition of molybdenum enhances its resistance to pitting and crevice corrosion, making it suitable for marine and chemical industries.
Industries such as petrochemical, power generation, oil and gas, and marine engineering frequently utilize Stainless Steel 316H Bars and Rods. Their elevated carbon content enhances strength and creep resistance, making them ideal for boilers, heat exchangers, superheaters, and furnace components. They excel in high-temperature and high-pressure applications where maintaining structural integrity is crucial. Plus, 316H provides outstanding corrosion resistance in acidic and chloride-rich environments, ensuring durability and long-lasting performance in demanding industrial operations.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Sahil Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Riyadh, Saudi Arabia
