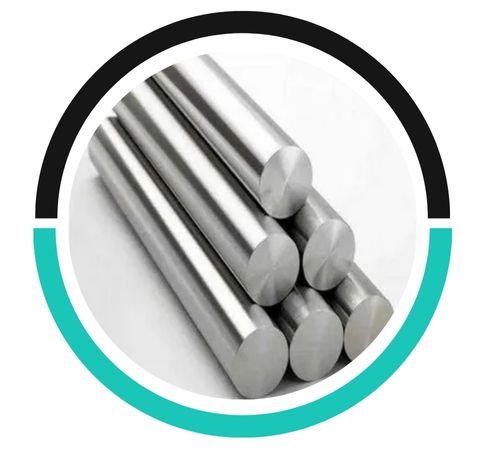

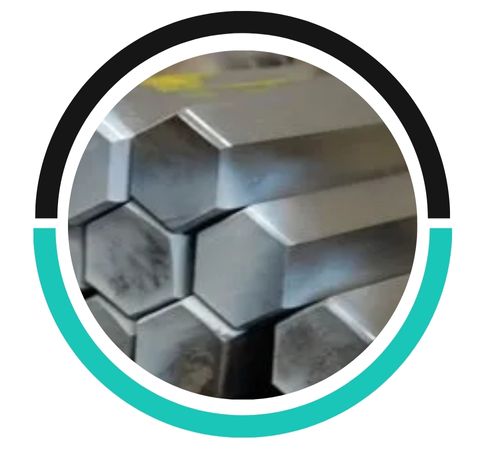

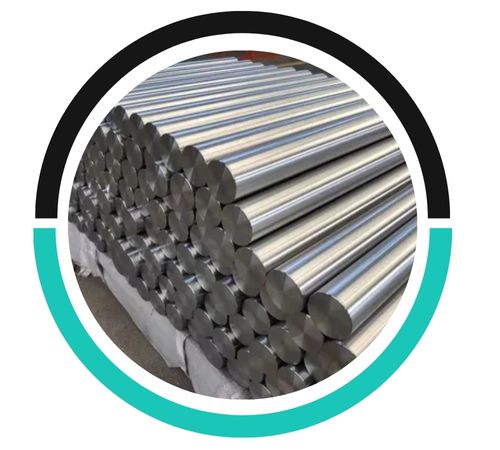

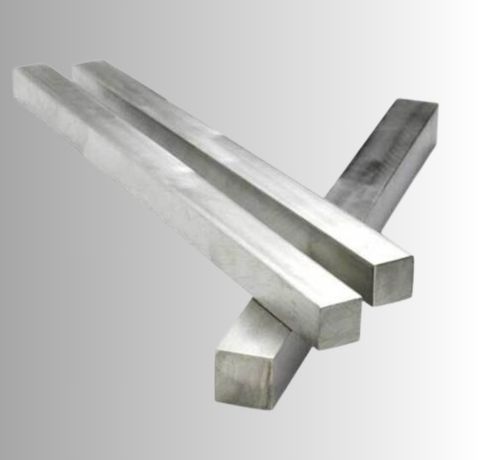

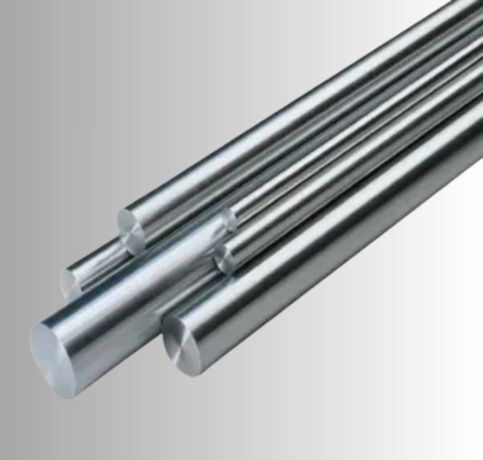

Sahil Metals has built a solid reputation as a leading manufacturer and supplier in Riyadh, Saudi Arabia, specializing in top-notch aluminium products like Aluminium 7050 Bars and Rods. These products are celebrated for their remarkable strength, toughness, and resistance to stress corrosion cracking, making them perfect for the rigorous demands of the aerospace, defense, and heavy engineering sectors. At Sahil Metals, every product is crafted with precision, durability, and reliability, all while adhering to international standards. With a strong focus on quality and customer satisfaction, the company delivers Aluminium 7050 Bars and Rods that promise outstanding performance, versatility, and lasting value across a variety of applications in Saudi Arabia.
Aluminium 7050 Bars and Rods are primarily made of aluminium, enriched with zinc (5.7–6.7%), magnesium (1.9–2.6%), and copper (2.0–2.6%), resulting in a high-strength, heat-treatable alloy. They boast excellent toughness, with high tensile strength ranging from 510–570 MPa and yield strength between 430–490 MPa, along with impressive fatigue resistance. This alloy maintains good fracture toughness and exceptional resistance to stress corrosion cracking, making it ideal for high-stress environments. Aluminium 7050 Bars and Rods deliver reliable performance under heavy loads while ensuring dimensional stability.
| Aluminium Alloy | ASTM B211, B211, B565, B316 5082, AMS 4121 |
| Standard | ASTM, ASME, AMS, GB/T, JIS |
| Aluminium Round Bar Temper | O, H12, H14, H16, H18, H22, H24, H26, H32, H112 |
| Aluminium Bar Form | Aluminium Round, Hex, Flat, Half Round, Oval, Rectangular in Black & Bright Finish |
| Aluminium Round Bar Diameter | 0.1-600mm,etc |
| Aluminium Hexagonal Bar | 0.1-600mm,etc |
| Aluminium Angle Bar Size | 0.5mm*40mm*40mm-20mm*400mm*400mm |
| Aluminium Flat Bar Thickness | 0.1-600mm,etc |
| Aluminium Flat Bar Size | 1-2500mm, etc |
| Aluminium Round Bar Length | 1-12m, Random, Fix & Cut Length or as per clients’ requirement |
| Aluminium Bar | Bright, Polish & Black |
| Weight % | Zn | Cu | Mg | Zr | Fe | Si | Mn | Ti | Cr | Others (total) |
| Minimum | 5.7 | 2.0 | 1.9 | 0.08 | – | – | – | – | – | – |
| Maximum | 6.7 | 2.6 | 2.6 | 0.15 | 0.15 | 0.12 | 0.10 | 0.06 | 0.04 | 0.15 |
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength | 515 MPa | 74695 psi |
| Yield strength | 455 MPa | 65992 psi |
| Fatigue strength | 240 MPa | 34809 psi |
| Elastic modulus | 70-80 GPa | 10153-11603 ksi |
| Poisson’s ratio | 0.33 | 0.33 |
| Elongation | 11% | 11% |
| UNS | EN | DIN,WNr | ISO |
| A97050 | EN3982 | 3.4144 | AlZn6CuMgZr |
| Size in mm | Average Weight | |
| KG/MTR | KG/FT | |
| 10 | 0.62 | 0.18 |
| 12 | 0.90 | 0.30 |
| 14 | 1.20 | 0.40 |
| 16 | 1.60 | 0.50 |
| 18 | 2.00 | 0.60 |
| 20 | 2.50 | 0.80 |
| 22 | 3.00 | 0.90 |
| 24 | 3.56 | 1.08 |
| 25 | 3.90 | 1.20 |
| 28 | 4.80 | 1.50 |
| 30 | 5.55 | 1.69 |
| 32 | 6.30 | 1.90 |
| 34 | 7.14 | 2.18 |
| 36 | 8.00 | 2.44 |
| 40 | 9.90 | 3.00 |
| 45 | 12.49 | 3.81 |
| 50 | 15.40 | 4.70 |
| 56 | 19.34 | 5.89 |
| 60 | 22.20 | 6.80 |
| 63 | 24.47 | 7.46 |
| 63.5 | 24.86 | 7.58 |
| 65 | 26.05 | 7.94 |
| 70 | 30.20 | 9.20 |
| 73 | 32.86 | 10.00 |
| 75 | 34.72 | 10.58 |
| 78 | 37.51 | 11.43 |
| 80 | 39.50 | 12.00 |
| 83 | 42.47 | 12.95 |
| 85 | 44.55 | 13.58 |
| 90 | 50.00 | 15.20 |
| 92 | 52.19 | 15.91 |
| 93 | 53.39 | 16.27 |
| 95 | 55.65 | 16.95 |
| 100 | 61.66 | 18.79 |
| 105 | 67.98 | 20.72 |
| 110 | 74.60 | 22.74 |
| 115 | 81.64 | 24.88 |
| 125 | 96.34 | 29.36 |
Yes, Aluminium 7050 bars are ideal for structural applications, particularly in aerospace and military sectors, offering high strength, corrosion resistance, and fatigue resistance, making them suitable for demanding environments and designs.
To maintain Aluminium 7050 bars, regularly clean them with mild soap and water to remove dirt and debris. Avoid harsh chemicals, inspect for corrosion, and store in a dry, cool environment.
Yes, Aluminium 7050 rods are highly recyclable. Aluminium, including alloy 7050, can be recycled multiple times without losing its properties, making it an environmentally friendly choice for sustainable manufacturing and use.
These bars and rods are extensively used in aerospace structures, including aircraft fuselages, wing skins, and bulkheads, thanks to their strength and lightweight characteristics. They’re also utilized in defense applications, automotive components, and marine structures where durability and fatigue resistance are crucial. Furthermore, Aluminium 7050 Bars and Rods are perfect for high-performance machinery, tooling, and structural frameworks that demand toughness and long-term stability in challenging conditions. Their unique blend of strength, corrosion resistance, and reliability makes Aluminium 7050 Bars and Rods a top choice in critical engineering industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
