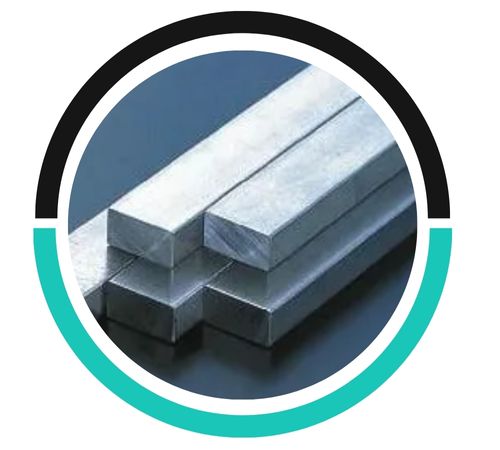

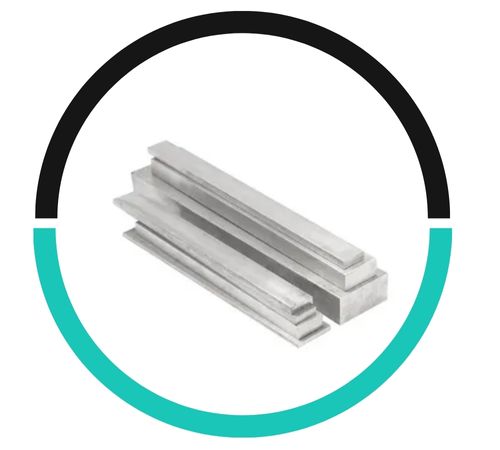

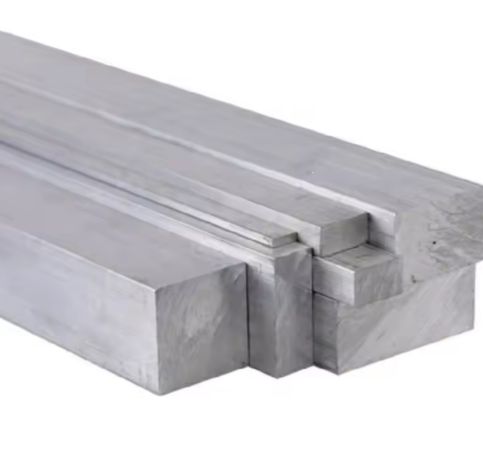

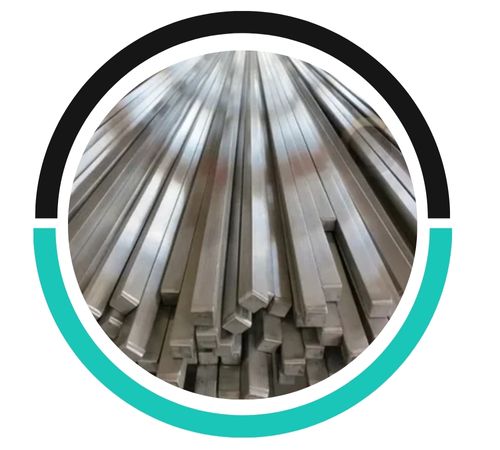

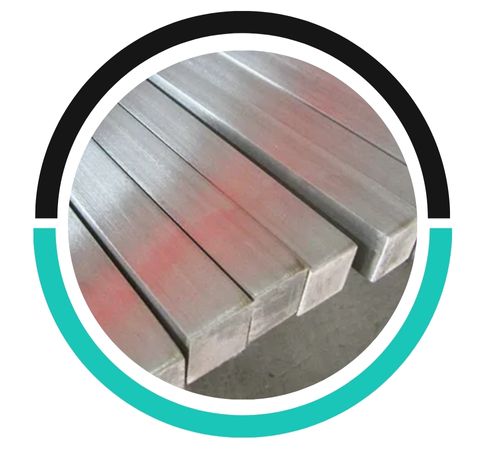

Sahil Metals, located in Riyadh, Saudi Arabia, stands out as a top-notch manufacturer and supplier of high-quality aluminium square bars and rods. With a strong focus on quality, precision, and ensuring customer satisfaction, Sahil Metals caters to a variety of industries, including construction, automotive, engineering, marine, and electrical sectors. Their aluminium square bars and rods are crafted using cutting-edge production methods and premium alloys, guaranteeing exceptional strength, resistance to corrosion, and precise dimensions. Renowned throughout Saudi Arabia and the Middle East, Sahil Metals provides reliable aluminium solutions tailored to the unique demands of contemporary industrial and structural applications.
These aluminium square bars and rods are primarily composed of high-purity aluminium (usually 95% or more), combined with elements like magnesium, silicon, or zinc, often sourced from grades such as 6061, 6082, or 7075. These alloys deliver remarkable strength, corrosion resistance, and ease of workability. The typical tensile strength falls between 130–570 MPa, with yield strength ranging from 70–500 MPa. They also boast good thermal and electrical conductivity, along with excellent machinability and weldability, making them perfect for structural, mechanical, and precision applications across various industries.
| Alloy | Fe | Si | Mg | Mn | Cu | Zn | Ti | Cr | Others | AI |
| 1100 (min) | 0.35 | 0.25 | 0.01 | 0.01 | 0.05 | 0.01 | 0.020 | Trace | 0.05 (each) | 99.60% |
| 1100 (max) | 0.50 | 0.35 | 0.03 | 0.05 | 0.20 | 0.05 | 0.030 | Trace | 0.15 (total) | remainder |
| 5083 | 0.40 max | 0.40 max | 4.0 / 4.90 | 0.40 / 1.0 | 0.10 max | 0.25 max | 0.15 max | 0.05 / 0.25 | 0.05 max | Bal |
| 6061 | 0.7 | 0.4-0.8 | 0.8-1.2 | 0.15 | 0.15-0.4 | 0.25 | 0.15 | 0.15-0.35 | 0.005/0.15 | Remainder |
| 6068 | 0.50 max | 0.7 – 1.3 | 0.06-1.20 | 0.40-1.00 | 0.10 max | 0.20 max | 0.10 max | 0.25 max | 0.05 max | Bal |
| 7075 min | 2.10 | 1.20 | 5.10 | 0.18 | ||||||
| 7075 max | 0.50 | 0.40 | 2.90 | 0.30 | 2.00 | 6.10 | 0.20 | 0.28 | 0.05 |
| Alloy | Temper | UTS(Mpa) | % Elongation | Tensile Strength | Hardness Brinell | Proof Stress | Yield Strength (PSI) | Shear Strength (PSI) | Brinell Hardness | |||
| Min | Max | 0.5 mm -0.8 mm | 0.81 mm – 1.30 mm | 1.30 mm – above | ||||||||
| 1100 | O | 75 | 110 | 20 | 25 | 29 | ||||||
| H12 | 95 | 130 | 5 | 6 | 7 | |||||||
| H14 | 110 | 145 | 3 | 4 | 5 | |||||||
| H16 | 130 | 165 | 2 | 3 | 4 | |||||||
| H18 | 150 | — | 2 | 2 | 3 | |||||||
| 5083 | 12 Min % | 275 – 350 MPa | 75 HB | 125 Min MPa | ||||||||
| 6061 | – | 45,000 | 12 | 40,000 | 31,000 | 95 | ||||||
| 6082 | 8 | 295 | 95 | – | 240 | – | – | |||||
7075 T6, T651 | 11 | 83-572 | 73- 503 | 150 | ||||||||
7075 T73, T7351 | 13 | 73-503 | 63-434 | NA | ||||||||
| Grade | UNS | USA | Japan | France | ISO | WNR | EN | DIN | ISO | BS (OLD) |
| 1100 | A91100 | AA1100 | JIS A1100P | NF 1100 | Al 99.0 Cu. | – | – | – | – | – |
| 6082 | A96082 | AA6082 | – | – | – | 3.2315 | AW-6082 | AlMgSi1 | AlSi1MgMn | HE30 |
| 5083 | A95083 | 5083 | – | – | AlMg4,5Mn0,7 | 3.3547 | AW-AlMg4,5Mn0,7 | AlMg4,5Mn | – | – |
| 6061 | A96061 | AA6061 | – | – | – | 3.3211 | AW-AlMg1SiCu EN AW-6061 | AlMgSiCu | AlMg1SiCu | HE20 |
| 7075 | A97075 | 7075 | 3.4365 | ENAW-AlZn5.5MgCu EN AW-7075 | AlZnMgCu1.5 | AlZn6MgCu | 7075 L95 L96, V95 |
Yes, aluminum square bars are corrosion-resistant due to the formation of a protective oxide layer on the surface. This layer helps prevent further corrosion in most environmental conditions.
Aluminum square bars perform well in moderate heat but lose strength at high temperatures, typically above 200°C (392°F). They are not ideal for extreme high-temperature environments due to softening and deformation.
Yes, aluminum square rods can be customized in size and length based on specific requirements. Manufacturers offer a range of dimensions and can tailor the rods to meet individual project needs.
Aluminium square bars and rods find extensive use in structural frameworks, supports, braces, and components for machinery and equipment. Their consistent shape and strength make them ideal for construction, transportation, marine, and general fabrication industries. Additionally, these bars are utilized in electrical enclosures, signage, architectural fittings, and custom-engineered parts. Their outstanding corrosion resistance and ease of machining make them suitable for both indoor and outdoor settings, while their lightweight yet robust characteristics help minimize material weight in demanding applications without compromising on performance.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
