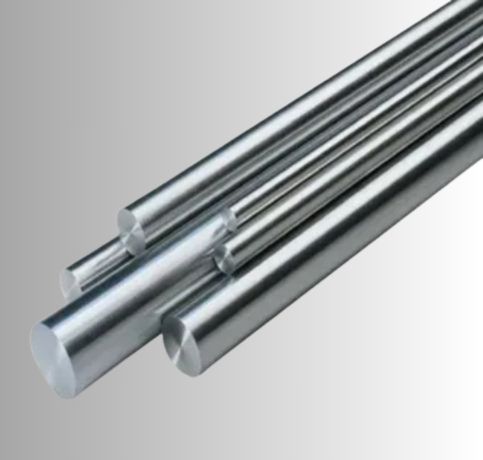

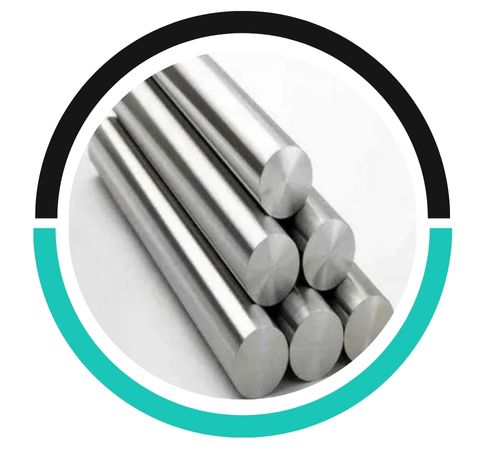

Sahil Metals has made a name for itself as a leading manufacturer and supplier in Riyadh, Saudi Arabia, specializing in top-notch aluminium products like Aluminium 2024 Bars and Rods. These products are celebrated for their impressive strength, outstanding fatigue resistance, and solid machinability, all crafted to meet the rigorous standards of various industries. At Sahil Metals, every item is designed to offer precision, durability, and reliability, serving sectors such as aerospace, automotive, defense, and structural engineering. With a strong focus on quality and customer satisfaction, the company delivers Aluminium 2024 Bars and Rods that blend performance, versatility, and long-lasting value for a multitude of applications throughout Saudi Arabia.
Aluminium 2024 Bars and Rods are primarily made of aluminium, with copper (3.8–4.9%), magnesium (1.2–1.8%), and manganese (0.3–0.9%) mixed in, resulting in a high-strength alloy perfect for structural uses. This alloy boasts excellent fatigue resistance, moderate corrosion resistance, and good machinability. Typically, its tensile strength falls between 400–480 MPa, while the yield strength ranges from 275–325 MPa, depending on the temper. These bars and rods can be heat-treated and maintain their stability even under high stress, making them ideal for aerospace and heavy-duty engineering projects.
| Aluminium Alloy | ASTM B211, B211, B565, B316 5082, AMS 4121 |
| Standard | ASTM, ASME, AMS, GB/T, JIS |
| Aluminium Round Bar Temper | O, H12, H14, H16, H18, H22, H24, H26, H32, H112 |

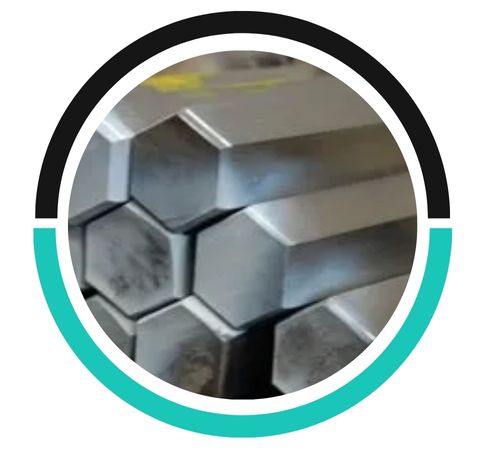

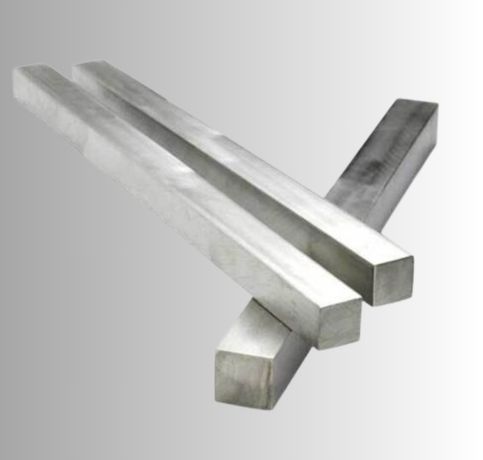

| Aluminium Bar Form | Aluminium Round, Hex, Flat, Half Round, Oval, Rectangular in Black & Bright Finish |
| Aluminium Round Bar Diameter | 0.1-600mm,etc |
| Aluminium Hexagonal Bar | 0.1-600mm,etc |
| Aluminium Angle Bar Size | 0.5mm*40mm*40mm-20mm*400mm*400mm |
| Aluminium Flat Bar Thickness | 0.1-600mm,etc |
| Aluminium Flat Bar Size | 1-2500mm, etc |
| Aluminium Round Bar Length | 1-12m, Random, Fix & Cut Length or as per clients’ requirement |

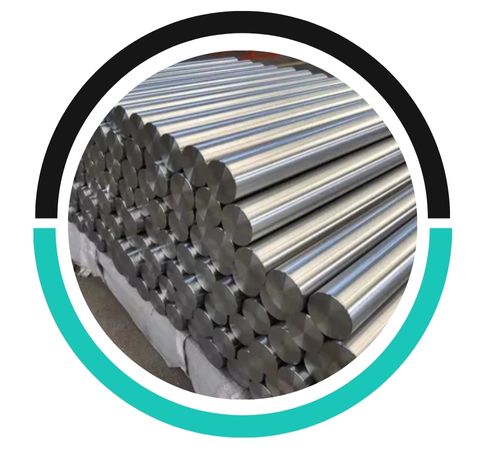

| Aluminium Bar | Bright, Polish & Black |
| Grade | Al | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Other |
| min. | Bal | 3.80 | 0.30 | 1.20 | ||||||
| max. | Bal | 0.50 | 0.50 | 4.90 | 0.90 | 1.80 | 0.10 | 0.25 | 0.15 | 0.05 |
| Temper | Tensile Strength | Yield Strength | Elongation |
| KSI | KSI | % | |
| (annealed) | 32 | 14 | 12 |
| T3 | 63 | 42 | 15 |
| STANDARD | UNS | WERKSTOFF NR. |
| Aluminium 2024 | A92024 | 3.1355 |
| Size in mm | Average Weight | |
| KG/MTR | KG/FT | |
| 10 | 0.62 | 0.18 |
| 12 | 0.90 | 0.30 |
| 14 | 1.20 | 0.40 |
| 16 | 1.60 | 0.50 |
| 18 | 2.00 | 0.60 |
| 20 | 2.50 | 0.80 |
| 22 | 3.00 | 0.90 |
| 24 | 3.56 | 1.08 |
| 25 | 3.90 | 1.20 |
| 28 | 4.80 | 1.50 |
| 30 | 5.55 | 1.69 |
| 32 | 6.30 | 1.90 |
| 34 | 7.14 | 2.18 |
| 36 | 8.00 | 2.44 |
| 40 | 9.90 | 3.00 |
| 45 | 12.49 | 3.81 |
| 50 | 15.40 | 4.70 |
| 56 | 19.34 | 5.89 |
| 60 | 22.20 | 6.80 |
| 63 | 24.47 | 7.46 |
| 63.5 | 24.86 | 7.58 |
| 65 | 26.05 | 7.94 |
| 70 | 30.20 | 9.20 |
| 73 | 32.86 | 10.00 |
| 75 | 34.72 | 10.58 |
| 78 | 37.51 | 11.43 |
| 80 | 39.50 | 12.00 |
| 83 | 42.47 | 12.95 |
| 85 | 44.55 | 13.58 |
| 90 | 50.00 | 15.20 |
| 92 | 52.19 | 15.91 |
| 93 | 53.39 | 16.27 |
| 95 | 55.65 | 16.95 |
| 100 | 61.66 | 18.79 |
| 105 | 67.98 | 20.72 |
| 110 | 74.60 | 22.74 |
| 115 | 81.64 | 24.88 |
| 125 | 96.34 | 29.36 |
Yes, Aluminium 2024 can be welded, but it is challenging due to its susceptibility to cracking. Specialized techniques like TIG welding with proper filler material and preheating are recommended for best results.
To maintain Aluminium 2024 bars, regularly clean with mild detergent, avoid exposure to harsh chemicals, and apply protective coatings. Store in dry conditions to prevent moisture and corrosion, ensuring longevity.
Yes, Aluminium 2024 can corrode, especially in harsh environments. It has moderate resistance to corrosion, but its susceptibility increases without proper protective coatings, making it prone to pitting and stress corrosion cracking.
You’ll find Aluminium 2024 Bars and Rods commonly used in aerospace components like aircraft wings, fuselage structures, and helicopter frames, thanks to their impressive strength-to-weight ratio. They’re also utilized in automotive parts, military vehicles, and structural applications where durability and fatigue resistance are essential. Furthermore, these bars and rods are key players in the manufacturing of gears, shafts, and machinery components that need to perform reliably under high stress. Their unique combination of strength, machinability, and versatility makes Aluminium 2024 Bars and Rods a go-to choice in demanding industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
