Sahil Metals, based in Riyadh, Saudi Arabia, stands out as a top manufacturer and supplier of high-quality Nitronic XM 19 Bars and Rods. Known for their exceptional stainless steel products, the company serves industries that demand superior strength, corrosion resistance, and wear performance. The Nitronic XM 19 Bars and Rods are specifically designed to endure tough chemical, marine, and high-temperature conditions while ensuring dimensional stability and mechanical integrity. By blending advanced metallurgy with precision manufacturing, Sahil Metals guarantees that each product adheres to international standards, making them essential for applications in chemical processing, aerospace, power generation, and industrial machinery.
Nitronic XM 19 is an austenitic stainless steel alloy made up of about 65–68% iron, 17–20% chromium, and 11–14% nickel, along with some manganese, silicon, and nitrogen. This unique blend gives it remarkable corrosion resistance, high tensile strength, and excellent wear resistance. Typically, XM 19 Bars and Rods showcase a tensile strength ranging from 690–860 MPa, a yield strength of 310–550 MPa, and an elongation of 30–40%. The alloy performs exceptionally well in oxidizing, reducing, and chloride-rich environments, providing outstanding fatigue and stress corrosion resistance for demanding industrial uses.
| Grade | Nitronic Alloy XM-19 (UNS No. S20910) |
|---|---|
| Specification | DIN, JIS, ASTM, BS, ASME, AISI |
| Nitronic XM 19 Square bar size | 4 to 100mm |
| Nitronic Alloy XM 19 Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Nitronic Alloy UNS S20910 Hex Bar size | 2-100mm A/F |
| Nitronic 50 Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |

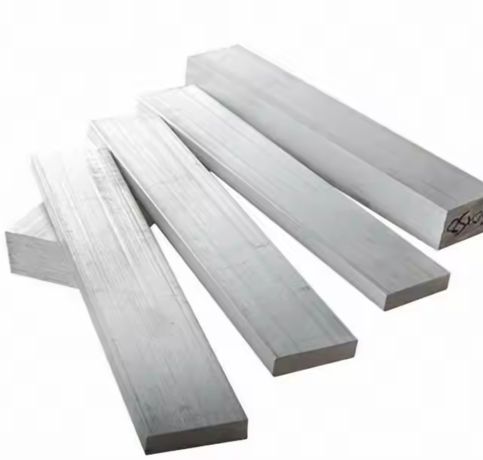

| Nitronic Alloy XM 19 Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Nitronic Alloy UNS S20910 Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Nitronic XM 19 Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Nitronic Alloy XM 19 Section | 3.0 to 12.0mm thickness |
| Nitronic Alloy UNS S20910 Round bar size | Diameter: 3-~800mm |
| Nitronic XM 19 Billet Size | 1/2″ to 495mm Diameter |
| Nitronic Alloy XM 19 Round Bar Standard Dimensions | Diameter / Height: |
| Nitronic XM 19 Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Nitronic Alloy XM 19 Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Nitronic Alloy UNS S20910 Technique | Nitronic XM 19 Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Nitronic XM 19 Condition | Hardened & tempered, annealed |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Form | Nitronic XM 19 Round, Rod, T-Bar, Nickel Alloy Channel Bar, Precision Ground Bar, Nickel Alloy Flat Bar, Nickel Alloy Square Bar, Nickel Alloy Blocks, Nickel Alloy Round Rod, Nickel Alloy Rings, Nickel Alloy Hollow, Nickel Alloy Triangle, Rectangle, Hex (A/F), Nickel Alloy Threaded, Half Round Bar, Profiles, Nickel Alloy Billet, Nickel Alloy Ingot, I/H Bar, Forging etc. |
| Processing | Bar cutting to 650mm |
| Our Nitronic 50 Round bar conforms to NACE MR0175/ISO 15156 | |
| Grade | C | Mn | S | Si | N | Ni | Cr |
| Nitronic Alloy XM-19 | .06 | .10 | 0.03 | 1.00 | 0.20 – 0.40 | 11.50 – 13.50 | 20.50 – 23.50 |
| Hardness MAX, Brinell | 241 |
| Ultimate Tensile Strength, ksi | 95 |
| 0.2% Yield Strength, ksi | 50 |
| Elongation, % | 35 |
| Reduction of Area, % | 55 |
| Grade | C | Mn | S | Si | N | Ni | Cr |
| Nitronic Alloy XM-19 | .06 | .10 | 0.03 | 1.00 | 0.20 – 0.40 | 11.50 – 13.50 | 20.50 – 23.50 |
Common diameters for Nitronic XM-19 rods typically range from 1/8 inch (3.175 mm) to 6 inches (152.4 mm), though custom sizes may also be available depending on the supplier.
Nitronic XM-19 rods typically come in standard sizes ranging from 1/8 inch to 6 inches in diameter, with lengths varying from 12 to 20 feet, depending on supplier and application.
Yes, Nitronic XM-19 bar can be welded. It is known for its excellent weldability, though proper procedures and filler materials are essential for maintaining its mechanical properties and corrosion resistance.
Nitronic XM-19 bars and rods are used wherever high strength coupled with excellent resistance to corrosion as well as abrasion is demanded. It is used particularly in marine environment where the materials have to offer resistance to corrosion from seawater, and for chemical processing industry where aggressive chemicals are encountered in regular exposure. It is further used in the aerospace and automobile industries for various parts such as shafts, valves, fasteners, where the parts have to stand high-stress conditions. Nitronic XM-19 is ideal for heat exchangers, pressure vessels, and pump components, providing long-lasting performance in harsh environments. It is also used in medical implants and food processing equipment because of its non-reactive properties.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
