Sahil Metals, a well-respected manufacturer and supplier located in Riyadh, Saudi Arabia, has built a solid reputation for providing top-notch metals and alloys designed to meet the needs of various industries. With a keen emphasis on precision engineering, durability, and performance, the company boasts an extensive range of products, including stainless steels, nickel alloys, and specialty materials. Among their standout offerings, Nitronic 30 Bar and Rod are particularly prized for their exceptional corrosion resistance, strength, and cost-effectiveness. Sahil Metals serves a variety of sectors, such as chemical processing, marine, construction, and transportation, delivering reliable and efficient material solutions.
Nitronic 30 Bar and Rod are high-strength austenitic stainless steels that include chromium, nickel, and manganese in their composition. They are known for their remarkable resistance to atmospheric corrosion, outstanding toughness, and superior mechanical strength compared to standard stainless steels like 304. These bars and rods are not only ductile and easy to weld, but they also maintain their structural integrity during fabrication. Their unique blend of strength and corrosion resistance makes them a versatile and economical option for a wide range of engineering applications.
| Grade | Nitronic 30 Round Bar |
|---|---|
| Specification | DIN, JIS, ASTM, BS, ASME, AISI |
| Nitronic 30 Square bar size | 4 to 100mm |
| Nitronic Alloy 30 Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Nitronic UNS S20400 Hex Bar size | 2-100mm A/F |
| Nitronic 30 Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Nitronic Alloy 30 Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Nitronic UNS S20400 Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Nitronic 30 Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Nitronic Alloy 30 Section | 3.0 to 12.0mm thickness |
| Nitronic UNS S20400 Round bar size | Diameter: 3-~800mm |
| Nitronic 30 Billet Size | 1/2″ to 495mm Diameter |
| Nitronic Alloy 30 Round Bar Standard Dimensions | Diameter / Height: |
| Nitronic 30 Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Nitronic Alloy 30 Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Nitronic UNS S20400 Technique | Nitronic 30 Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Nitronic 30 Condition | Hardened & tempered, annealed |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Form | Nitronic 30 Round, Rod, T-Bar, Nickel Alloy Channel Bar, Precision Ground Bar, Nickel Alloy Flat Bar, Nickel Alloy Square Bar, Nickel Alloy Blocks, Nickel Alloy Round Rod, Nickel Alloy Rings, Nickel Alloy Hollow, Nickel Alloy Triangle, Rectangle, Hex (A/F), Nickel Alloy Threaded, Half Round Bar, Profiles, Nickel Alloy Billet, Nickel Alloy Ingot, I/H Bar, Forging etc. |
| Processing | Bar cutting to 650mm |
| Our Nitronic 30 Round bar conforms to NACE MR0175/ISO 15156 | |
| Grade | C | Mn | S | Si | N | Ni | Cr |
| Nitronic Alloy 30 | 0.030 | 17.0 – 15.0 | 0.030 | 1.00 | 0.30 – 0.15 | 3.00 – 1.50 | 17.00 – 15.00 |
Ultimate Tensile, min. | Yield Strengtd (0.2% OS) min. | Elong. in 2 in., or 50mm, min., % | R/A | Hardness, max. | |
Min | 95 KSi | 48 KSi | 35 |
| |
Max | 241 Brinell | ||||
Min | 655 MPa | 330 MPa | |||
Max | 100 Rockwell B |
| STANDARD | UNS | DIN |
|---|---|---|
| Nitronic 30 Round bar | S20400 | – |
Common diameters for Nitronic 30 rod typically range from 1/8" to 6", with popular sizes including 1/4", 1/2", 3/4", 1", and 2" for various industrial applications.
Nitronic 30 bars typically come with a smooth finish, although a rough finish may also be available depending on the supplier or the specific processing requirements.

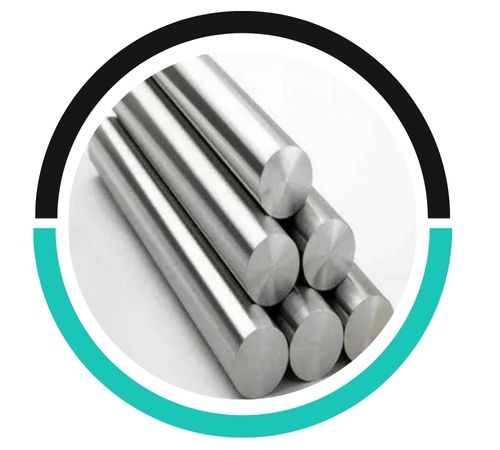

Nitronic 30 rod is typically available in sizes ranging from 1/8" to 3" in diameter. Finishes include hot-rolled, cold-drawn, and polished, offering a smooth, uniform surface for various applications.
You’ll find Nitronic 30 Bar and Rod commonly used in marine hardware, storage tanks, conveyors, railcars, and chemical processing equipment. Their impressive resistance to corrosion in both atmospheric and mild chemical environments makes them ideal for outdoor and marine settings. Additionally, they are utilized in architectural structures, pulp and paper processing, and transportation equipment, thanks to their durability and strength. Industries turn to Nitronic 30 for applications that demand long service life, reliability, and cost-effective performance without sacrificing mechanical or corrosion-resistant qualities.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Sahil Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Riyadh, Saudi Arabia
