Sahil Metals stands out as a top-notch manufacturer and supplier of premium metal products in Riyadh, Saudi Arabia, earning a solid reputation for its commitment to excellence and reliability. They specialize in corrosion-resistant alloys, offering high-quality Nitronic 40 bars and rods that cater to a wide range of demanding applications. Renowned for its strength and resistance to oxidation, Nitronic 40 is perfect for industries that need superior performance in high-stress and high-temperature environments. With a focus on precision manufacturing and rigorous quality control, Sahil Metals has become a trusted provider of advanced materials throughout the Middle East and beyond.
Nitronic 40 is a high-performance austenitic stainless steel alloy, primarily made up of 19–21% chromium, 8.5–10.5% nickel, and 0.2–0.4% nitrogen, along with trace amounts of manganese and molybdenum. It boasts excellent resistance to high-temperature oxidation and enhanced mechanical strength compared to standard stainless steels. Typically, it has a tensile strength of about 95 ksi (655 MPa) and a yield strength of around 45 ksi (310 MPa). Nitronic 40 also retains good toughness at low temperatures and is non-magnetic when annealed, making it a great choice for critical aerospace and high-temperature applications.
| Grade | Nitronic alloy 40 Round Bar bars |
|---|---|
| Specification | DIN, JIS, ASTM, BS, ASME, AISI |

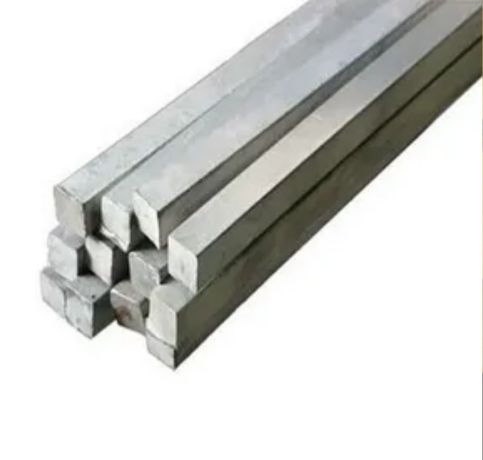

| Nitronic 40 Square bar size | 4 to 100mm |
| Nitronic Alloy 40 Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| 40 Nitronic Alloy Hex Bar size | 2-100mm A/F |
| Nitronic 40 Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |

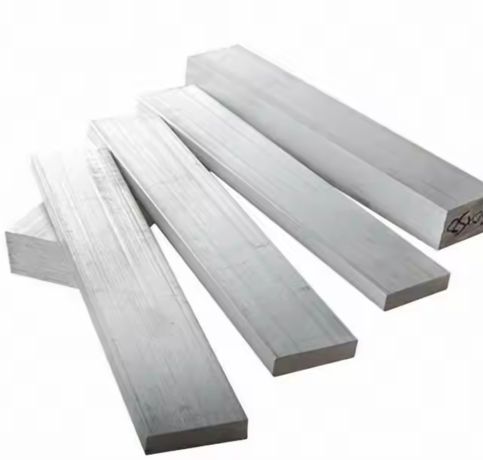

| Nitronic Alloy 40 Rectangles Size | 33 x 30mm to 295 x 1066mm |
| 40 Nitronic Alloy Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Nitronic 40 Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Nitronic Alloy 40 Section | 3.0 to 12.0mm thickness |
| 40 Nitronic Alloy Round bar size | Diameter: 3-~800mm |
| Nitronic 40 Billet Size | 1/2″ to 495mm Diameter |
| Nitronic Alloy 40 Round Bar Standard Dimensions | Diameter / Height: |
| Nitronic 40 Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Nitronic Alloy 40 Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| 40 Nitronic Alloy Technique | Nitronic 40 Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Nitronic 40 Condition | Hardened & tempered, annealed |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Form | Nitronic 40 Round, Rod, T-Bar, Nickel Alloy Channel Bar, Precision Ground Bar, Nickel Alloy Flat Bar, Nickel Alloy Square Bar, Nickel Alloy Blocks, Nickel Alloy Round Rod, Nickel Alloy Rings, Nickel Alloy Hollow, Nickel Alloy Triangle, Rectangle, Hex (A/F), Nickel Alloy Threaded, Half Round Bar, Profiles, Nickel Alloy Billet, Nickel Alloy Ingot, I/H Bar, Forging etc. |
| Processing | Bar cutting to 650mm |
| Our Nitronic 40 Round bar conforms to NACE MR0175/ISO 15156 | |
| Grade | C | Mn | S | Si | N | Ni | Cr |
| Nitronic Alloy 40 | 0.08 | 10.0 – 8.0 | 0.030 | 1.00 | 0.40 – 0.15 | 7.50 – 5.50 | 21.50 – 19.00 |
Ultimate Tensile, min. | Yield Strengtd (0.2% OS) min. | Elong. in 2 in., or 50mm, min., % | R/A | Hardness, max. | |
Min | 95 KSi | 48 KSi | 35 |
| |
Max | 241 Brinell | ||||
Min | 655 MPa | 330 MPa | |||
Max | 100 Rockwell B |
| STANDARD | UNS | DIN |
|---|---|---|
| Nitronic 40 Round Bars | S21900 | – |
Nitronic 40 bars are available in both rough and smooth finishes, depending on the manufacturing process and customer requirements. Smooth finishes are typical for applications needing better aesthetics or precision.
Nitronic 40 rods are available in sizes ranging from 3mm to 300mm diameter. Finishes include bright, polished, black, and rough-turned, catering to industrial and decorative applications.
Yes, Nitronic 40 bar can be welded using standard methods like TIG, MIG, and shielded metal arc welding. Preheating is not required, and post-weld annealing ensures optimal properties.
You’ll find Nitronic 40 bars and rods widely utilized in aerospace, chemical processing, cryogenic systems, and marine environments, thanks to their remarkable strength, oxidation resistance, and ability to perform under extreme temperatures. These bars and rods are perfect for crafting aircraft engine components, heat exchangers, pressure vessels, fasteners, and structural parts. Their non-magnetic properties and durability make them ideal for situations where both mechanical strength and corrosion resistance are essential, ensuring reliability and performance even in aggressive or high-stress conditions.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Sahil Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Riyadh, Saudi Arabia
