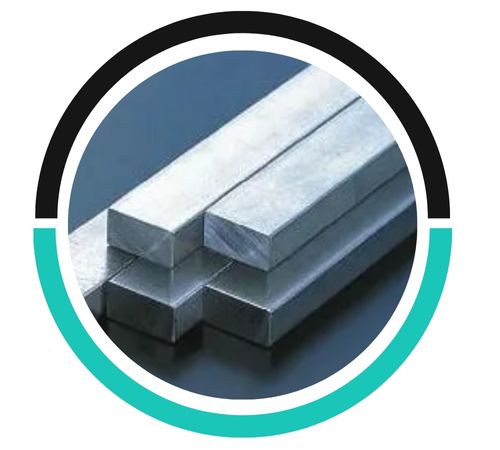

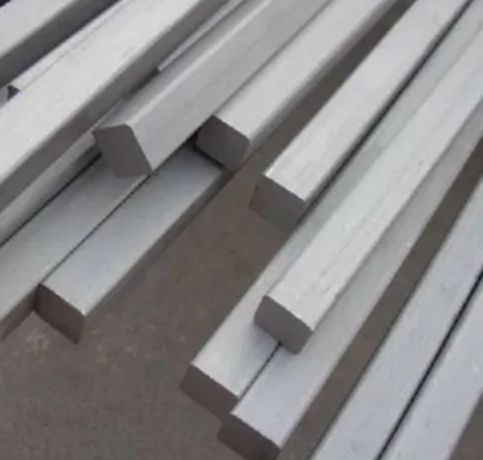

Sahil Metals, a reputable manufacturer and supplier based in Riyadh, Saudi Arabia, is well-known for delivering top-notch stainless steel products that adhere to international standards. One of their standout offerings is the Stainless Steel 416 Square Bars/Rods, which are prized for their exceptional machinability, strength, and durability. Crafted with precision and cutting-edge technology, these bars and rods find their way into industries that demand accurate machining and reliable performance. With a perfect blend of cost-effectiveness and high functionality, Sahil Metals guarantees that their Stainless Steel 416 Square Bars/Rods are a trusted choice for engineering, construction, and industrial applications throughout the region.
These Stainless Steel 416 Square Bars/Rods are martensitic stainless steels primarily made up of iron, chromium (12–14%), and carefully controlled amounts of carbon, manganese, silicon, phosphorus, and sulfur. The addition of sulfur significantly boosts machinability without sacrificing strength. In terms of mechanical properties, these bars/rods showcase a tensile strength ranging from 620 to 760 MPa, a yield strength of about 275 MPa, an elongation of 18%, and a hardness of up to 241 Brinell. They offer moderate corrosion resistance and outstanding machinability, making them particularly well-suited for precision machining applications that require strength, toughness, and wear resistance.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A582, A276, A564, ASTM A484, 484M
Surface : hrap, hot rolled pickled or sand blasting finished, cold drawn, polished, hairline
Size : Tolerance: H8, H9, H10, H11, H12, H13K9, K10, K11, K12
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 416 | 0.15 | 14.0 – 12.0 | 1.25 | – | 0.06 | 0.15 | 1 |
| Element | Density, lb/in3 | Melting Point | Electrical Resistivity |
| SS 416 | 0.282 lbs/in3 7 .80 g/cm3 | 2700 – 2790 °F (1488 – 1530 °C) | At 70 °F (21 °C): 343.0 |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 416 | 1.4005 | S41600 | SUS 416 | 416S21 | – | – | X12CrS13 |
| SQUARES | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.62 | 2.05 |
| 18 | 0.79 | 2.59 |
| 20 | 0.76 | 2.49 |
| 22 | 1.18 | 3.87 |
| 25 | 1.52 | 5.00 |
| 28 | 1.91 | 6.27 |
| 30 | 2.19 | 7.20 |
| 32 | 2.50 | 8.19 |
| 36 | 3.16 | 10.37 |
| 38 | 3.52 | 11.55 |
| 40 | 3.90 | 12.80 |
| 45 | 4.94 | 16.20 |
| 50 | 6.10 | 20.00 |
| 56 | 7.65 | 25.08 |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Stainless Steel 416 Square Bars/Rods are extensively utilized in applications that demand high machinability and wear resistance. They’re commonly found in the manufacturing of valves, pump shafts, screws, nuts, bolts, gears, and fasteners. Their robust nature makes them ideal for automotive components, mechanical parts, and general industrial machinery. Furthermore, these square bars/rods are also employed in aerospace components, firearms, turbine blades, and tools that necessitate precise machining. With their unique combination of strength, machinability, and moderate corrosion resistance, Stainless Steel 416 Square Bars/Rods prove to be a versatile material across various engineering and manufacturing sectors.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
