Sahil Metals, located in Riyadh, Saudi Arabia, has earned a solid reputation as a reliable manufacturer and supplier of top-notch metal products designed to cater to the diverse needs of various industries. With a strong focus on adhering to international quality standards, Sahil Metals provides an extensive selection of stainless steel solutions, including the highly regarded Stainless Steel 316L Forgings. These forgings are celebrated for their outstanding corrosion resistance, durability, and weldability, making them perfect for use in challenging and corrosive environments. Catering to sectors like marine, pharmaceuticals, petrochemicals, and food processing, Sahil Metals ensures that their stainless steel products are not only dependable but also engineered for long-lasting operational efficiency.
Stainless Steel 316L Forgings are crafted from a low-carbon austenitic stainless steel alloy that contains roughly 16–18% chromium, 10–14% nickel, and 2–3% molybdenum, with a maximum carbon content of 0.03%. This unique composition provides remarkable resistance to pitting, crevice corrosion, and chemical attacks in both chloride and acidic settings. The forgings boast a tensile strength of about 485 MPa, a yield strength of 170 MPa, and an elongation of around 40%. The low carbon content not only enhances weldability but also minimizes the risk of carbide precipitation, making 316L an excellent choice for welded structures in corrosive applications.
| Standard | ASTM A182, ASME SA182 |
| Specification | DIN, ASTM, BS and all International Standards |
| Flat bar blocks | up to 27″ width and 15,000 lbs. |
| Cylinders and sleeves | up to 50″ maximum O.D. and 65″ maximum length |
| Discs and hubs | up to 50″ diameter and 20,000 lbs. |
| Rolled, hand forged or mandrel forged rings | up to 84″ maximum O.D. and 40″ maximum length |
| Rounds, shafts and step shafts | up to 144″ maximum length and 20,000 lbs. |

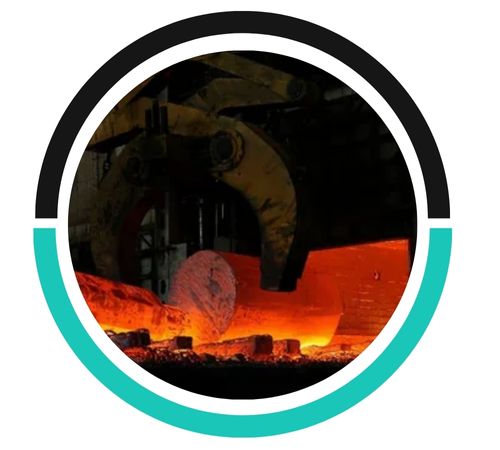

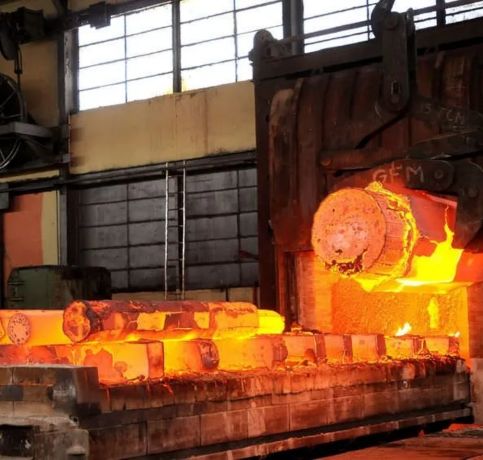

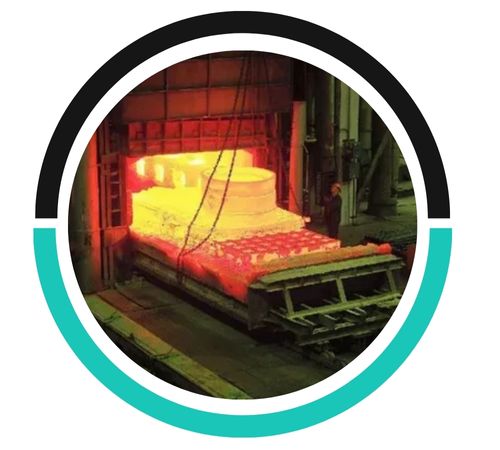

| Forging Types | Impression Die Forging, Open Die Forging, Seamless Rolled Forging, Hot Forging, Cold Forging, Open die hammer forging, Impression die drop forging, Closed Die Forging, Press Forging, Upset Forging, Compression Forging, Swaging, Rotary Forging, Roll forging. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316L | 0.035 max | 2.0 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 10.00 – 14.00 | 68.89 min |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.0 g/cm3 | 1399 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316L | 1.4404 / 1.4435 | S31603 | SUS 316L | 316S11 / 316S13 | 03Ch17N14M3 / 03Ch17N14M2 | Z3CND17‐11‐02 / Z3CND18‐14‐03 | X2CrNiMo17-12-2 / X2CrNiMo18-14-3 |
Yes, Stainless Steel 316L can be forged into custom shapes, offering flexibility for various applications. Its excellent machinability allows precise fabrication.
Stainless Steel 316L Forgings require minimal maintenance, primarily periodic cleaning to prevent corrosion buildup. Regular inspections ensure long-term performance and durability.
Stainless Steel 316L Forgings may have limited strength at very high temperatures and can be more expensive than other grades. It may also be susceptible to localized corrosion in certain environments.
Stainless Steel 316L Forgings find their place in industries that demand high corrosion resistance and mechanical strength, particularly in tough or marine conditions. Common applications include components for pumps, valves, heat exchangers, flanges, pressure vessels, and fittings. These forgings are particularly suited for pharmaceutical, chemical processing, food and beverage, and marine equipment, where hygiene, durability, and a long service life are crucial. Their superb weldability and formability also make them ideal for custom-fabricated parts that will be exposed to moisture, chemicals, or high-pressure situations over extended periods.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
