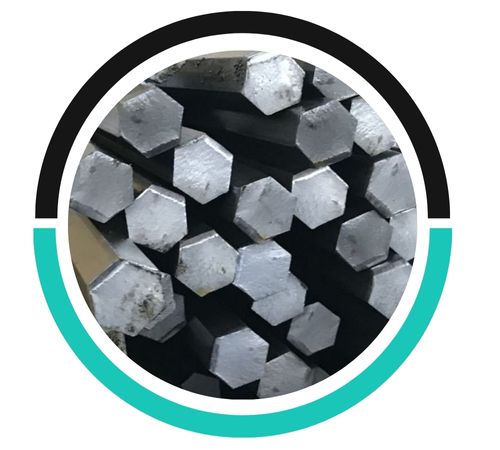

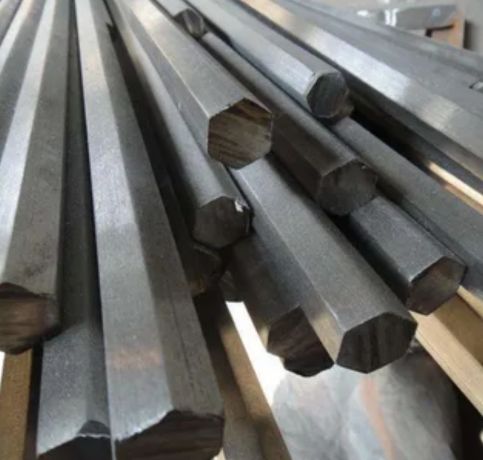

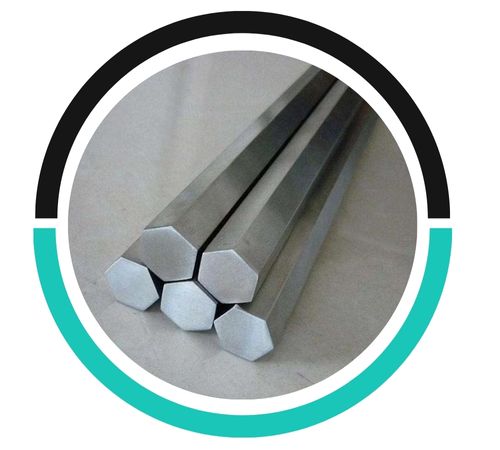

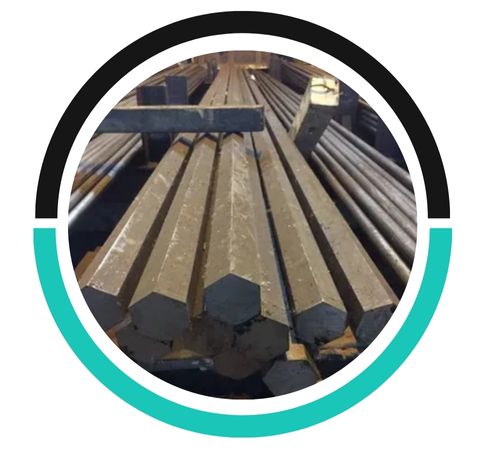

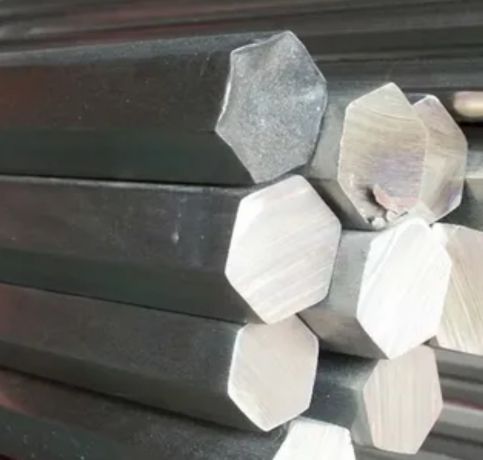

Sahil Metals, located in Riyadh, Saudi Arabia, has made a name for itself as a top-notch manufacturer and supplier of high-quality metal and alloy products tailored for various industrial sectors. Among their impressive lineup, Sahil Metals proudly offers robust and precisely engineered **Alloy Steel Hex Bars**. These bars are celebrated for their strength, toughness, and outstanding machinability, making them perfect for heavy-duty tasks in industries like automotive, construction, oil & gas, and manufacturing. With a strong commitment to quality control, technical excellence, and timely delivery, Sahil Metals guarantees that every product aligns with international standards and meets customer needs.
Typically, Alloy Steel Hex Bars are made up of elements like carbon (0.28–0.40%), manganese (0.60–1.65%), chromium (0.50–1.20%), and molybdenum (0.15–0.30%), depending on the specific grade (like AISI 4140 or 4130). These elements work together to boost strength, hardenability, and wear resistance. The mechanical properties are impressive, featuring a tensile strength ranging from 655 to 1080 MPa, yield strength between 415 and 930 MPa, along with excellent toughness and fatigue resistance. Often, these hex bars undergo heat treatment to enhance their mechanical performance, ensuring they maintain dimensional stability even in high-stress or thermal conditions.
| Specifications | ASTM A182, ASME SA182 |
|---|---|
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Range | 5mm to 500mm Dia in 100mm to 6000mm Length |
| Diameter | 10 mm To 200 mm |
| Thickenss | 0.5mm to 500mm Diameter |
| High Speed Steel (HSS), HCHCR & OHNS in Grade | M2, M3, M35, M42, T-1, T-4, T-15, T-42, D2, D3, H11, H13, OHNS-01 & EN52 |
| Finish | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Length | 1000 mm Long To 6000 mm Long |
| Form | Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc. |
| Element | C | Cr | Mn | Mo | P | S | Si | Ni |
| F5 | 0.15 Max | 4.0-6.0 | 0.30-0.60 | 0.44-0.65 | 0.035 Max | 0.030 Max | 0.50 Max | 0.50 Max |
| F1 | 0.15 Max | 3.0-5.0 | 0.30-0.60 | 0.40-0.50 | 0.035 Max | 0.030 Max | 0.50 Max | 0.50 Max |
| F22 | 0.05-0.15 | 2.00-2.50 | 0.30-0.60 | 0.90-1.10 | 0.035 Max | 0.040 Max | 0.50 Max | – |
| F91 | 0.08-0.12 | 8.0-9.5 | 0.30-0.60 | 0.85-1.05 | 0.020 Max | 0.010 Max | 0.20-0.50 | 0.40 Max |
| F9 | 0.15 Max | 8.0-10.0 | 0.30-0.60 | 0.90- 1.10 | 0.030 Max | 0.030 Max | 0.50- 1.00 | – |
| F11 | 0.10-0.20 | 1.00-1.50 | 0.40-0.65 | 0.44-0.65 | 0.025 Max | 0.040 Max | 0.50-0.80 | – |
| Grade | Tensile Strength (ksi) min | Elongation (% in 50mm) min | Yield Strength 0.2% Proof (ksi) min |
| F9 | 415 | 30 | 205 |
| F5 | 275 | 485 | 20 |
| Size (mm) | Weight (kg/m) | Size (mm) | Weight (kg/m) | Size (mm) | Weight (kg/m) |
| 7 x 7 | 0.337 | 19 x 19 | 2.479 | 38 x 38 | 9.916 |
| 8 x 8 | 0.44 | 20 x 20 | 2.747 | 40 x 40 | 10.988 |
| 9 x 9 | 0.556 | 21 x 21 | 3.029 | 42 x 42 | 12.114 |
| 10 x 10 | 0.687 | 22 x 22 | 3.324 | 45 x 45 | 13.906 |
| 11 x 11 | 0.831 | 24 x 24 | 3.956 | 48 x 48 | 15.822 |
| 12 x 12 | 0.989 | 25 x 25 | 4.292 | 50 x 50 | 17.168 |
| 13 x 13 | 1.161 | 26 x 26 | 4.642 | 53 x 53 | 19.29 |
| 14 x 14 | 1.346 | 28 x 28 | 5.384 | 55 x 55 | 20.774 |
| 15 x 15 | 1.545 | 30 x 30 | 6.181 | 60 x 60 | 24.723 |
| 16 x 16 | 1.758 | 32 x 32 | 7.032 | 65 x 65 | 29.015 |
| 17 x 17 | 1.985 | 34 x 34 | 7.939 | 70 x 70 | 33.65 |
| 18 x 18 | 2.225 | 36 x 36 | 8.9 | 75 x 75 | 38.629 |
Alloy steel hex bars are manufactured by hot rolling or forging alloy steel billets, followed by precision machining, annealing, and surface finishing to achieve the desired size, strength, and quality.
The best finishes for corrosion resistance in alloy steel hex bars and rods include zinc plating, chrome plating, electropolishing, and black oxide coating, as well as applying epoxy or powder coatings for additional protection.
Alloy Steel Hex Bars find their way into applications that require both strength and wear resistance, such as gear shafts, fasteners, studs, machine components, and tools for the oil & gas sector. Their hexagonal shape provides a better grip and improved torque handling in mechanical assemblies. These bars excel under high stress, impact, and pressure, making them a go-to choice for automotive suspension systems, heavy machinery, and construction frameworks. The blend of machinability, durability, and strength makes these bars a favored option for both structural and high-load-bearing applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Sahil Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Riyadh, Saudi Arabia
