Sahil Metals, located in Riyadh, Saudi Arabia, is a trusted name when it comes to manufacturing and supplying top-notch Titanium Grade 1 Bars/Rods. Known for their remarkable resistance to corrosion and superb formability, these titanium bars are perfect for a variety of industrial, chemical, and marine uses. At Sahil Metals, we make sure that every product adheres to strict international standards, providing you with reliable and durable titanium solutions. Our dedication to precision and customer satisfaction allows us to serve clients throughout Saudi Arabia and the Middle East, offering materials that consistently perform well, even in the toughest conditions.
Titanium Grade 1 Bars/Rods are made from commercially pure titanium with the lowest oxygen content (up to 0.18%), which gives them outstanding ductility and corrosion resistance. This grade boasts a tensile strength of around 240 MPa, along with excellent weldability and impressive resistance to corrosion from various chemicals, seawater, and industrial environments. Grade 1 titanium also offers good formability, making it suitable for creating complex shapes and fabricating without sacrificing strength or durability.
| Standards : | ASTM B348, B863 / ASME SB 348, SB 863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |

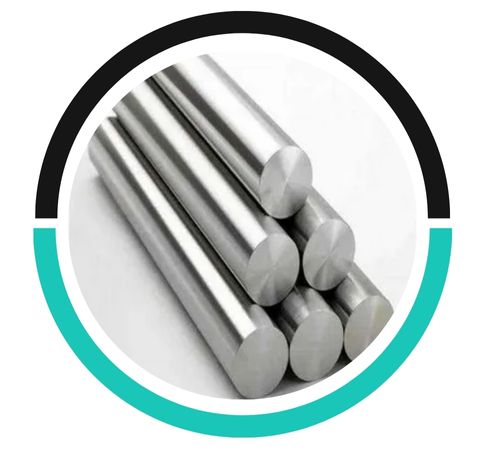

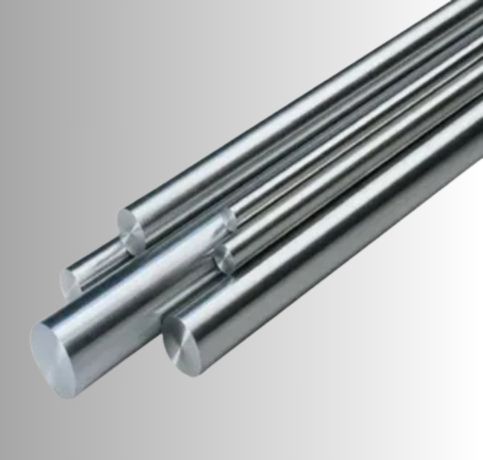

| Round bar size : | Diameter: 3-~800mm |

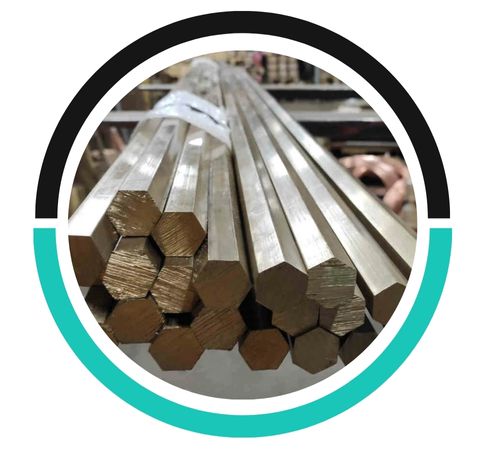

| Hex Bar size : | 2-100mm A/F |

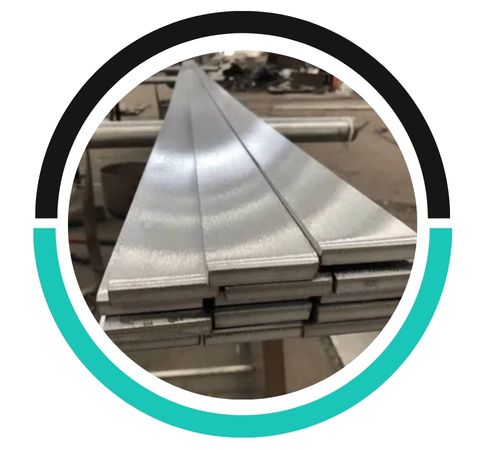

| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

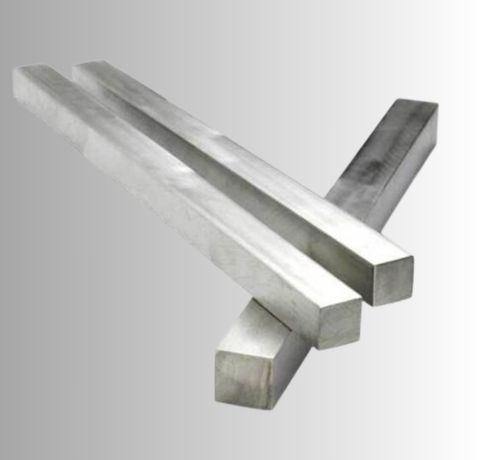

| Square bar size : | 4 to 100mm |

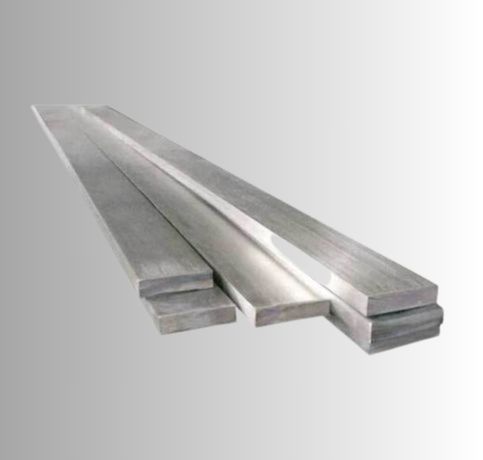

| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr 1 | 3.7025 | R50250 |
| Grade | C | N | O | H | Ti | Fe |
| Titanium Grade 1 | 0.08 max | 0.03 max | 0.18 max | 0.015 max | Bal | 0.20 20 |
| Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 240 | 170 | 24 % |
| Physical Properties | Metric | English |
|---|---|---|
| Density | 4.51Â g/cc | 0.163Â lb/inÂł |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Titanium Grade 1 Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@sahilmetals.com
These Titanium Grade 1 Bars/Rods find extensive use in chemical processing, desalination plants, marine equipment, and heat exchangers, thanks to their exceptional resistance to corrosion in harsh environments. They are also perfect for medical implants, architectural projects, and aerospace components where flexibility and corrosion resistance are essential. The unique combination of softness, ductility, and resistance to oxidizing agents makes this material an outstanding choice for long-lasting, high-performance applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Sahil Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Riyadh, Saudi Arabia
