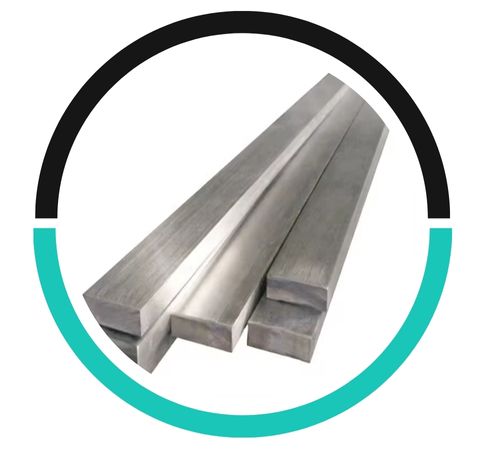

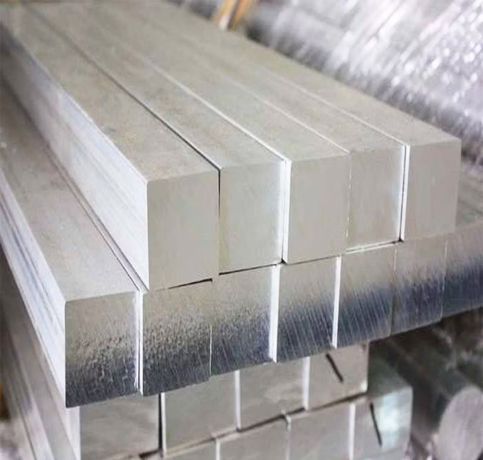

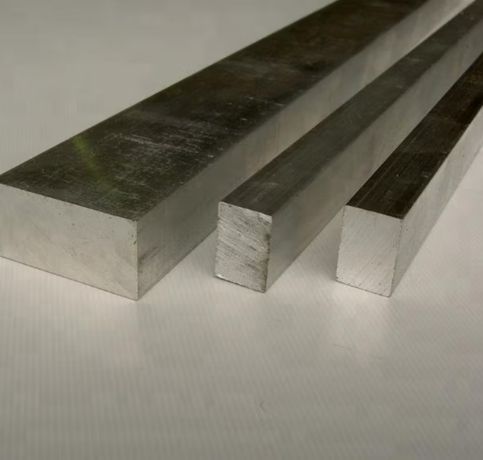

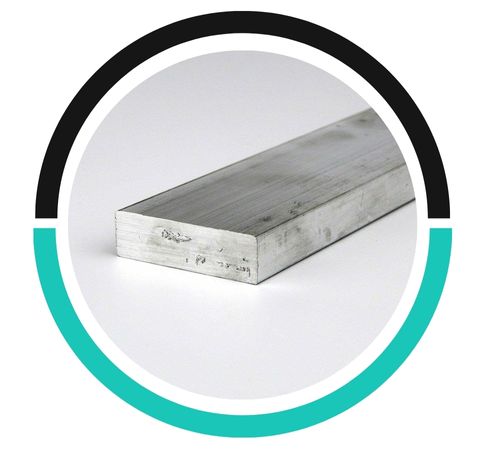

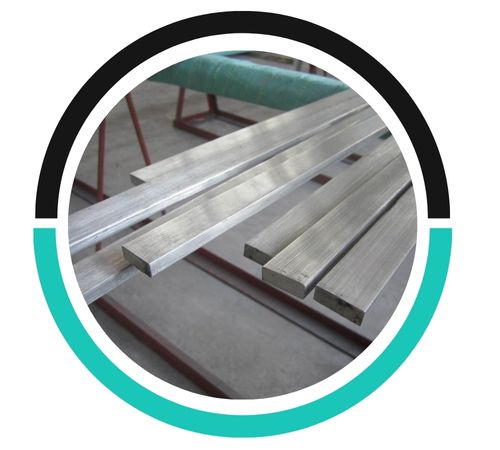

Khaleed Stainless, located in Riyadh, Saudi Arabia, has made a name for itself as a leading manufacturer and supplier of corrosion-resistant stainless steel products. One of their standout offerings is the **Stainless Steel 904L Rectangular Bars**, crafted specifically for high-performance applications in challenging environments. These bars are prized for their exceptional corrosion resistance, formability, and structural integrity. With a variety of sizes and finishes available, Khaleed Stainless’s 904L rectangular bars cater to industries like chemical processing, marine, pharmaceuticals, and food production, where durability and precision are crucial for reliable, long-term operation.
The Stainless Steel 904L Rectangular Bars are composed of a low-carbon, high-alloy austenitic stainless steel that includes around 25% nickel, 20% chromium, 4.5% molybdenum, and a touch of copper. This unique blend provides them with remarkable resistance to strong acids, pitting, and crevice corrosion. They typically boast mechanical properties such as tensile strength ranging from 490 to 710 MPa and a yield strength of about 220 MPa. The rectangular design ensures stability and even load distribution in structural applications. Additionally, 904L offers excellent weldability and toughness across a broad spectrum of temperatures and corrosive conditions, making it a top choice for demanding service environments.
| Standards | ASTM / ASME |
| Designation | B 649, SB 649 |
| Grade | 904L Rectangular Bars and Rods 904L Rectangular Bars and Rods: ASTM B 649, ASME SB 649 |
|
EN/DIN |
1.4539
X1NiCrMoCu25-20-5 |
|---|---|
|
AFNOR |
Z2CNDU25.20 |
|
UNS |
N08904 |
|
AISI |
904L / F904L |
|
BS |
904S13 |
|
SS |
2562 |
|
OTHER |
ASTM A182
ASTM A262
ASTM A479
ASTM B649 / ASME SB649
DIN 17440
EN10088-3
EN10272
NACE MR01-75 / ISO 15156
SEW 400-VdTÜV421 |
|
BRANDS |
URANUS B6™
VLX904™
AL-904L™
CRONIFER 1925™
2RK65™ |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Cu |
|---|---|---|---|---|---|---|---|---|---|
| SS 904L | 0.020 max | 2 max | 1 max | 0.040 max | 0.030 max | 19.0-23.0 | 4.0-5.0 max | 23.00 – 28.00 | 1.0-2.0 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 7.95 g/cm3 | 1350 °C (2460 °F) | Psi – 71000 , MPa – 490 | Psi – 32000 , MPa – 220 | 35% |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | KS | AFNOR | EN |
|---|---|---|---|---|---|---|---|
| SS 904L | 1.4539 | N08904 | SUS 904L | 904S13 | STS 317J5L | Z2 NCDU 25-20 | X1NiCrMoCu25-20-5 |
Choose Stainless Steel 904L Rectangular Bars based on the specific corrosion resistance and strength requirements of your application. Consider factors such as temperature, chemical exposure, and mechanical stresses to ensure optimal performance.
Stainless Steel 904L Rectangular Bars are available in various sizes, typically ranging from 10mm to 100mm in thickness and widths up to 200mm, with customizable lengths. Specific dimensions can be tailored to meet project requirements based on customer needs.
Yes, Stainless Steel 904L Rectangular Bars can be used for underground applications due to their exceptional corrosion resistance, particularly in environments with high chloride content. Their durability ensures reliable performance in harsh, buried conditions.
Stainless Steel 904L Rectangular Bars find extensive use in sectors where both strength and corrosion resistance are vital. In chemical and petrochemical facilities, they serve as frameworks, supports, and structural components that come into contact with aggressive acids. In marine settings, they are perfect for deck structures and fittings that face saltwater exposure. The pharmaceutical and food industries rely on them for clean, non-reactive environments. These bars are also well-suited for pollution control systems, heat exchangers, and fabricated assemblies that require flat profiles, precision, and durability.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
