Sahil Metals, located in Riyadh, Saudi Arabia, is a trusted name in the manufacturing and supply of high-performance metal products, with a focus on advanced alloys tailored for tough industrial settings. One of their standout offerings is Inconel 601 forgings, designed to provide exceptional resistance against high-temperature oxidation and corrosion. These forgings are perfect for situations that involve thermal cycling, mechanical stress, and exposure to harsh environments. With a strong dedication to quality, precision, and customer satisfaction, Sahil Metals caters to industries like petrochemical, aerospace, power generation, and heat treatment, delivering durable, top-notch solutions that promise maximum reliability and a long service life.
Inconel 601 is a nickel-chromium-iron alloy that contains about 58–63% nickel, 21–25% chromium, and up to 1.7% aluminum, along with trace amounts of iron and silicon. It boasts impressive mechanical strength, oxidation resistance, and metallurgical stability at high temperatures, reaching up to 1200°C. The alloy has a tensile strength of around 650 MPa and a yield strength of about 300 MPa. Inconel 601 also stands up well against spalling and carburization in high-heat conditions, making it an excellent choice for forged components that face thermal stress. Its robust strength and resistance to scaling enhance both durability and performance in extreme industrial settings.
Specifications ASTM B564 / ASME SB564, AMS 5665
Flat bar blocks up to 27″ width and 15,000 lbs.
Cylinders and sleeves up to 50″ maximum O.D. and 65″ maximum length
Discs and hubs up to 50″ diameter and 20,000 lbs.
Rolled, hand forged or mandrel forged rings up to 84″ maximum O.D. and 40″ maximum length
Rounds, shafts and step shafts up to 144″ maximum length and 20,000 lbs.
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr |
| Inconel 601 | 0.10 max | 1.0 max | 0.5 max | 0.015 max | 1.0 max | Balance | 58.0 – 63.0 | 21.0 – 25.0 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
| STANDARD | UNS | WNR. | AFNOR | EN | JIS | BS | GOST | OR |
| Alloy 601 | N06601 | 2.4851 | NiCr23Fe | NiCr15Fe | NCF 601 | NA 49 | XH60BT | ЭИ868 |
Temperature control ensures uniform heating, preserving the microstructure and mechanical properties of forged Inconel 601. Inadequate control can lead to defects, reduced strength, and compromised performance in high-temperature applications.

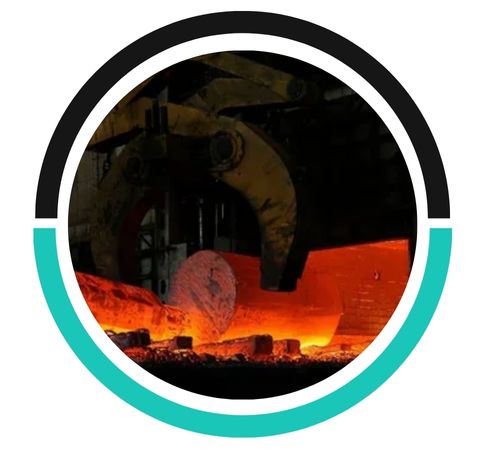

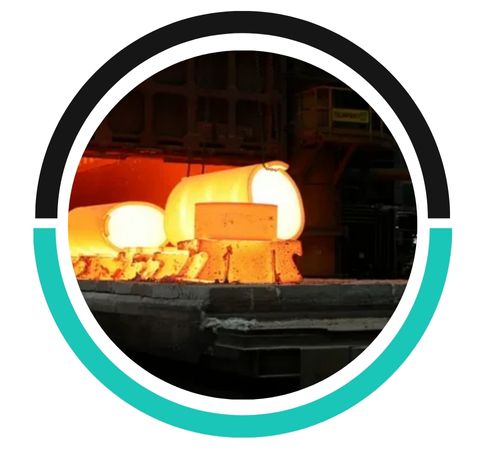

Inconel 601 forgings are produced through a combination of hot working and controlled cooling, typically involving heating to high temperatures followed by forging to shape. Post-forging, the material undergoes heat treatment to optimize strength and enhance corrosion resistance.
To improve the surface finish of forged Inconel 601 parts, you can use methods such as polishing, grinding, or shot blasting. Additionally, applying a protective coating or performing heat treatments can help enhance surface smoothness and reduce oxidation.
Inconel 601 forgings find their place in various industries, including petrochemical, heat treatment, aerospace, and power generation. They are commonly used in furnace components, radiant tubes, muffles, heat exchangers, and parts for gas turbines. Their remarkable resistance to oxidation, spalling, and thermal fatigue makes them ideal for extreme heat and corrosive environments. Inconel 601 forgings maintain their mechanical integrity even under fluctuating temperatures, ensuring longevity and reliable performance. These qualities make them a go-to choice for components that need to withstand harsh operating conditions.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Sahil Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Riyadh, Saudi Arabia
