Sahil Metals has built a solid reputation as a leading manufacturer and supplier in Riyadh, Saudi Arabia, specializing in high-quality Incoloy 925 Bars and Rods. These products are celebrated for their remarkable blend of strength, toughness, and exceptional resistance to corrosion, even in the harshest environments. With a commitment to precision engineering and adherence to international standards, Sahil Metals caters to various industries, including oil and gas, marine, petrochemical, power generation, and chemical processing. The durability and reliability of Incoloy 925 Bars and Rods make them the go-to choice for demanding applications that require a long service life under extreme operating conditions.
Incoloy 925 Bars and Rods are crafted from nickel-iron-chromium alloys, enhanced with molybdenum, copper, titanium, and aluminum. This distinctive blend offers outstanding resistance to stress corrosion cracking, pitting, and crevice corrosion, all while maintaining impressive tensile strength and hardness. The alloy also boasts superior resistance to both reducing and oxidizing agents, as well as chloride-rich environments and sour-gas conditions, ensuring mechanical stability and reliability in aggressive applications.
| Standards | ASTM B805, ASME SB 805 |
|---|---|
| Specifications | DIN, EN, ASTM, JIS, ASME, BS, AISI |

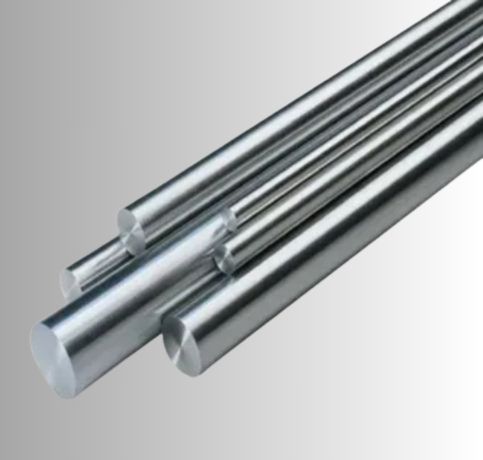

| 925 Incoloy Round Bars size | Diameter: 3-~800mm |

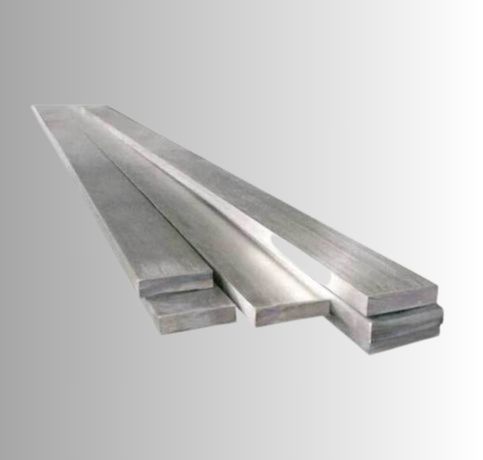

| Incoloy 925 Flat Bars size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Incoloy 925 Angle Bars size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Incoloy 925 Channel Bars | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Alloy 925 Rectangular Bars Section | 3.0 to 12.0mm thickness |
| Incoloy 925 Billet Size | 1/2 to 495mm Diameter |
| Incoloy 925 Rectangle Bar Size | 33 x 30mm to 295 x 1066mm |
| Incoloy 925 Hex Bar size | 2-100mm A/F |
| Incoloy 925 Hollow Bars | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Diameter | 20mm, 30mm, 50mm, 80mm, 100mm, 150mm, 200mm, 500mm |
| Length | 1m-12m or as required |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish | hot rolled annealed, peeled, Bright, hot-worked and cold-worked rod and bar, centreless ground, Centreless Ground and Black, Polish, Cold Rolled (CR), hot rolled ( R), smooth turned, Cold (bright) drawn, Grinding, slit rolled edge, Rough Turned. |
| Surface | Hot Rolled Pickled, Bright, Sand Blasting Finished, Cold Drawn, Hairline,Polished |
| Condition | Hardened & tempered, annealed |
| Technique | Cold Drawn, Hot Rolled, Forged Round Bars, Cold Rolled, Rod |
| Processing | Bars cutting to 650mm |
| Form | Rod, Round, Channel Bars, T-Bars, Flat Bars, Precision Ground Bars, Blocks, Square, Round Rod, Triangle, Hollow, Rectangle, Threaded, Hex (A/F), Profiles, Half Round Bars, Ingot, Billet, I/H Bars, Forging etc. |
| Grade | Ni | Cr | Fe | Si | Mo | Cu | Mn | C | S | Al |
| Incoloy 925 | 42 – 46 | 19.55 – 22.5 | 22 min | 0.5 max | 2.5 – 3.5 | 1.5 – 3.0 | 1.0 max | 0.03 max | 0.03 max | 0.1 – 0.5 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.14 g/cm3 | 1343°C | 650 | 300 | 30 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Incoloy 925 | – | N09925 |
Yes, Incoloy 925 rods are highly corrosion-resistant, particularly in aggressive environments such as acidic and chloride-containing media. Their composition includes nickel, iron, and chromium, enhancing their resistance to corrosion, pitting, and stress corrosion cracking.
Yes, Incoloy 925 bars can be customized in size and length to meet specific requirements. They are available in various dimensions and can be tailored for different industrial applications.
Incoloy 925 bars perform exceptionally well in high-temperature environments, maintaining strength and stability. Their high nickel and chromium content provides excellent resistance to oxidation and carburization at elevated temperatures.
These Incoloy 925 Bars and Rods find their place in industries that require both strength and corrosion resistance. They’re commonly used in oil and gas wellhead equipment, tubing, valves, marine hardware, chemical processing plants, and power generation units. Their ability to endure sour-gas environments and harsh acidic conditions makes them perfect for offshore drilling and petrochemical applications. Moreover, Incoloy 925 Bars and Rods are utilized in pollution control, pipelines, and engineering projects where high performance, durability, and safety are paramount. Their versatility guarantees consistent performance, even in the most challenging industrial settings.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
