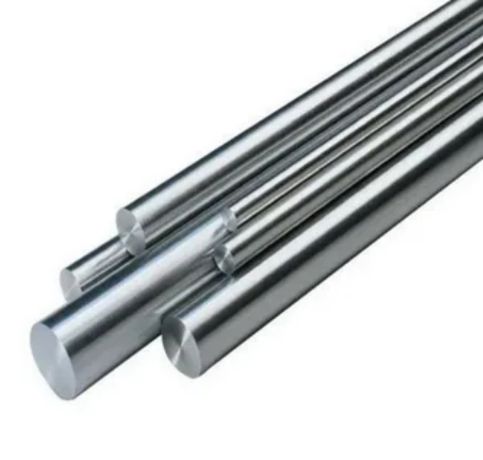

Sahil Metals stands out as a top manufacturer and supplier in Riyadh, Saudi Arabia, known for its high-quality Incoloy 330 Bars and Rods. These products are celebrated for their remarkable resistance to oxidation, carburization, and high-temperature corrosion. With a commitment to precision engineering and strict adherence to international quality standards, Sahil Metals caters to various industries, including petrochemical, chemical processing, furnace equipment, thermal power, marine, and aerospace. Incoloy 330 Bars and Rods are prized for their exceptional mechanical strength, durability, and reliable performance in harsh environments, making them the go-to choice for critical high-temperature applications.
These bars and rods are made from nickel-iron-chromium alloys, enhanced with silicon to boost their resistance to oxidation and carburization. This unique composition ensures excellent metallurgical stability, high tensile strength, and outstanding resistance to creep and stress-rupture, even under elevated temperatures. The alloy also shows good resistance to thermal shock, maintaining its mechanical integrity in both oxidizing and reducing conditions, which guarantees long-lasting durability in tough environments.
| Grade | Incoloy 330 – UNS N08330 |
|---|---|
| Specification | ASTM B511 UNS N08330, AMS 5716, ASTM B511, ASME SB511 |
| Round bar size | Diameter: 3-~330mm |
| Hex Bar size | 2-100mm A/F |
| Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Square bar size | 4 to 100mm |
| Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Section | 3.0 to 12.0mm thickness |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Billet Size | 1/2″ to 495mm Diameter |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Round Bar Standard Dimensions | Diameter / Height: |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Condition | Hardened & tempered, annealed |
| Technique | Incoloy 330 Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Processing | Bar cutting to 650mm |
| Form | Incoloy 330 Rod,Channel Bar, Forging, Precision Ground Bar, Flat Bar, Round, Rod, T-Bar, Square, Blocks, Round Rod, Rings, Hollow, Threaded, Half Round Bar, Profiles, Triangle, Rectangle, Hex (A/F), Billet, Ingot, I/H Bar etc. |
| Our stockyad location for fast delivery across India | Shivamogga, Agra, Ahmedabad, Mumbai, Dhanbad, Thiruvananthapuram, Bengaluru, Tiruchirappalli, Pune, Noida, Tirunelveli, Bhubaneswar, Chennai, Coimbatore, Pimpri-Chinchwad, Hyderabad, Navi Mumbai |
| Our Incoloy 330 Round bar conforms to NACE MR0175/ISO 15156 | |
|
Element |
Average Nominal % |
|---|---|
|
Chromium |
18.00 – 22.00 |
|
Nickel |
34.00 37.00 |
|
Carbon |
0.08 Max |
|
Silicon |
1.00 – 1.50 |
|
Manganese |
2.00 Max |
|
Phosphorus |
0.03 Max |
|
Sulfur |
0.03 Max |
|
Copper |
1.00 Max |
|
Iron |
Balance |
|
Tensile Strength – ksi (min.) |
0.2% Offset Yield Strength – ksi (min.) |
Elongation in 2 inches – % (min.) |
Hardness – Rockwell B |
|---|---|---|---|
|
70 |
30 |
30 |
| STANDARD | WERKSTOFF NR. | UNS |
|---|---|---|
| Incoloy 330 | 1.4886 | N08330 |
Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
Yes, Incoloy 330 bars and rods offer excellent corrosion resistance, especially in high-temperature environments. They are highly resistant to oxidation, carburization, and sulfidation.
Yes, Incoloy 330 bars and rods can be customized in various sizes and lengths to meet specific requirements. They are available in different diameters, lengths, and shapes as per client specifications.
Incoloy 800, 800H, and 800HT bars and rods perform exceptionally well in high-temperature environments, maintaining their strength and resistance to oxidation and carburization. They are ideal for applications in furnaces, heat exchangers, and gas turbines.
Incoloy 330 Bars and Rods find extensive use in industries that demand materials capable of withstanding extreme heat and corrosive atmospheres. They’re commonly utilized in industrial furnaces, petrochemical processing plants, heat exchangers, thermal power plants, and chemical reactors. Their resistance to oxidation and carburization makes them perfect for components like furnace muffles, conveyor systems, radiant tubes, and boiler fixtures. Moreover, Incoloy 330 Bars and Rods are also used in marine, aerospace, and engineering projects where strength, thermal stability, and durability are essential. Their versatility ensures reliable performance across a broad spectrum of challenging industrial applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Sahil Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Riyadh, Saudi Arabia
