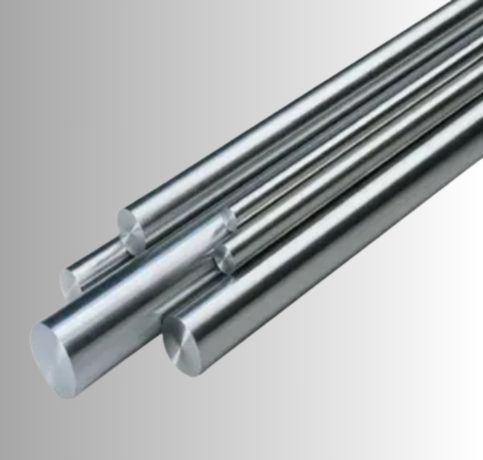

Sahil Metals, based in Riyadh, Saudi Arabia, is a reliable manufacturer and supplier of top-notch **Super Duplex Steel Ferralium 255 Bars/Rods**. These bars are designed to withstand extreme strength and offer outstanding corrosion resistance, making them perfect for tough service environments. Crafted to meet rigorous international standards, they are an excellent choice for industries with high demands. With a strong focus on quality, Sahil Metals caters to customers throughout Saudi Arabia and the Middle East, providing dependable, high-performance materials for marine, chemical, and industrial uses.
Super Duplex Steel Ferralium 255 Bars/Rods are composed of a highly alloyed stainless steel that includes about 25% chromium, 5% nickel, 3.6% molybdenum, along with some copper and nitrogen. This unique blend gives them remarkable resistance to pitting, crevice corrosion, and chloride stress corrosion cracking. Ferralium 255 boasts a tensile strength of around 800–1000 MPa, ensuring excellent toughness and durability, even in sub-zero temperatures, while also offering good weldability and fatigue strength.
| Grade | Ferralium 255 |
|---|---|
| Specification | Super Duplex Steel Ferralium 255 Round Bar |
| Square bar size | 4 to 100mm |
| Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Hex Bar size | 2-100mm A/F |
| Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Section | 3.0 to 12.0mm thickness |
| Round bar size | Diameter: 3-~800mm |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Billet Size | 1/2″ to 495mm Diameter | Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Condition | Hardened & tempered, annealed |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Technique | Ferralium 255 Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Form | Ferralium 2507 Round Bar, Rod, T-Bar, Super Duplex Steel Channel Bar, Precision Ground Bar, Super Duplex Steel Flat Bar, Super Duplex Steel Square Bar, Super Duplex Steel Blocks, Super Duplex Steel Round Rod, Super Duplex Steel Rings, Super Duplex Steel Hollow, Super Duplex Steel Triangle, Rectangle, Hex (A/F), Super Duplex Steel Threaded, Ferralium 2507 Half Round Bar, Profiles, Super Duplex Steel Billet, Super Duplex Steel Ingot, I/H Bar, Forging etc. |
| Mo | Cu | Cr | Ni | N | Si | Mn | W | P | S | C | Fe |
| 3.5 | 1.75 | 26 | 6.3 | 0.23 | 0.15 | 0.5 | 1 max | 0.025 max | 0.025 max | Balance | 0.005 max |
| Yield Strength (0.2%Offset) | MPa – 570-600 |
| Tensile Strength | MPa – 790 |
| Elongation | 25 % |
| STANDARD | UNS | DIN |
|---|---|---|
| Ferralium 2507 round bar | S32550 | 1.4507 |
Yes, Super Duplex Steel Ferralium 255 Bars can be welded using suitable techniques like TIG, MIG, or SMAW, ensuring precise heat input control to prevent phase imbalance. Pre-heating and post-weld heat treatments may be required for optimal weld integrity.
Super Duplex Steel Ferralium 255 Rods are highly resistant to galvanic corrosion due to their excellent corrosion resistance properties. However, they may still experience some susceptibility in highly corrosive environments when coupled with more anodic materials.
Super Duplex Steel Ferralium 255 rods are available in a wide range of sizes, typically from 3mm to 500mm in diameter. They are offered in finishes such as hot-rolled, cold-drawn, and polished for various applications.
These Ferralium 255 Bars/Rods find extensive applications in desalination plants, offshore oil and gas equipment, heat exchangers, chemical processing systems, and marine hardware. They perform reliably in environments that are exposed to seawater, chlorides, and both acidic and alkaline chemicals. Thanks to their strength and corrosion resistance, these bars allow for lighter, longer-lasting components, which helps reduce maintenance and enhances operational efficiency in critical applications where standard stainless steels might not hold up.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
