Sahil Metals, based in Riyadh, Saudi Arabia, stands out as a top-notch manufacturer and supplier of high-performance metal products, delivering dependable solutions to various industries throughout the Middle East. With a focus on corrosion-resistant and high-temperature alloys, Sahil Metals offers premium Nickel Alloy 201 bars and rods, celebrated for their remarkable thermal and electrical conductivity. Built to thrive in tough environments, these bars and rods boast exceptional resistance to corrosive substances. Committed to quality, precision, and customer satisfaction, Sahil Metals has earned a reputation as a reliable source for advanced materials used in chemical, electrical, and marine sectors.
Nickel Alloy 201 is a low-carbon variant of commercially pure nickel (≥99.5% Ni), crafted specifically to resist graphitization at high temperatures. It contains a maximum of 0.02% carbon, along with trace amounts of iron, manganese, and copper. This alloy showcases impressive mechanical stability, featuring a typical tensile strength of 403 MPa, yield strength of 103 MPa, and 45% elongation. Nickel 201 retains its strength and ductility even in high-temperature settings and offers superior corrosion resistance in reducing and caustic environments. Its low hardness and high formability make it perfect for a range of machining and forging processes.
| Grade | Nickel 201 |
|---|---|
| Specification | UNS N02201, ASME SB160/ASTM B160 |

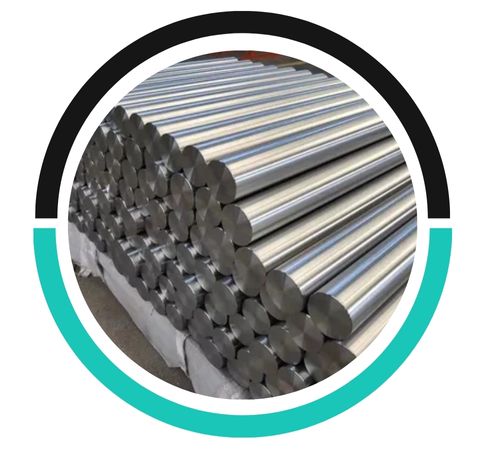

| Round bar size | Dia: 3mm~800mm |
| Hollow Bar | 32 OD x 16 ID to 250 OD x 200 ID |

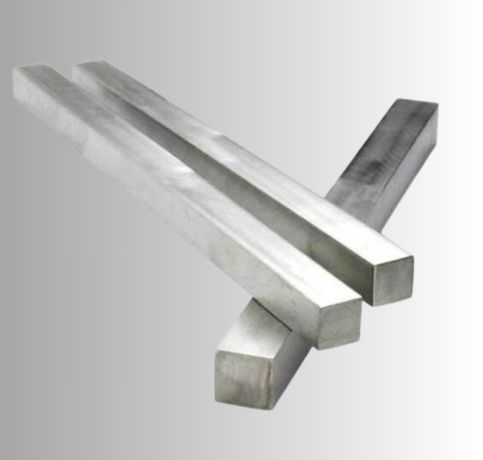

| Square bar size | 4mm to 100mm |

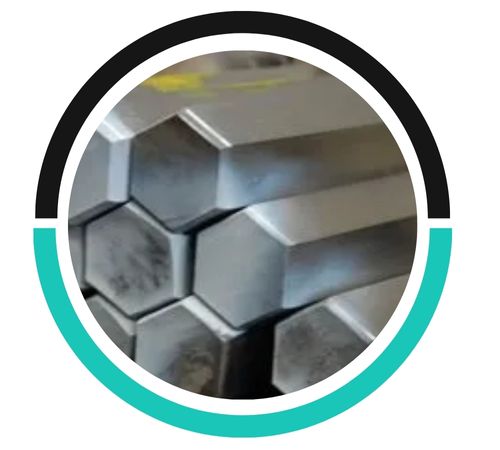

| Hex Bar size | 2mm to 100mm A/F |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Billet Size | 1/2″ to 495mm Diameter |
| Channel Bar | 80 x 40 to 150 x 75mm section; 5 to 6mm thickness |

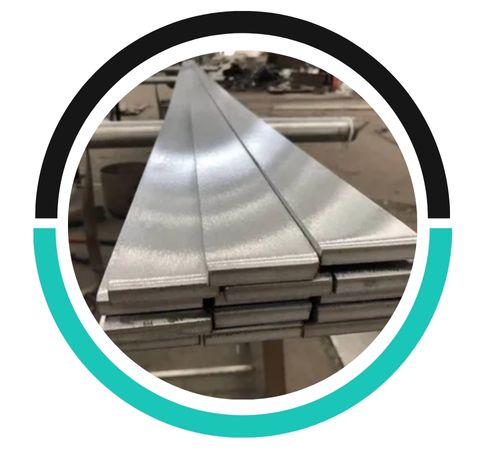

| Flat bar size | Thickness: 2mm to 100mm |
| Width: 10mm to 500mm | |
| Hollow Bar | 32mm Outside Diameter x 16mm Inside Diameter to 250mm Outside Diameter x 200mm Inside Diameter) |
| Angle bar size | 3*20*20~12*100*100 |

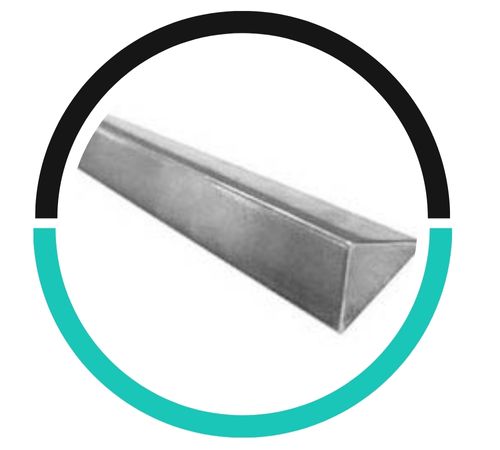

| Form | Rings, Hollow, Flat Bar, Rectangle, Triangle, Square,Rod, Half Round Bar, T-Bar, Hex (A/F), Precision Ground Bar, Round, Channel Bar, Blocks, Round Rod, Threaded, Profiles, Billet, Ingot, I/H Bar, Forging etc. |
| Tolerance | H8, K12, H10, H11, K10, H9, K11, K9, H12, H13, or custom |
| Technique | Forged Round Bar, Rod, Hot Rolled, Cold Drawn, Cold Rolled, |
| Condition | annealed, Hardened and tempered |

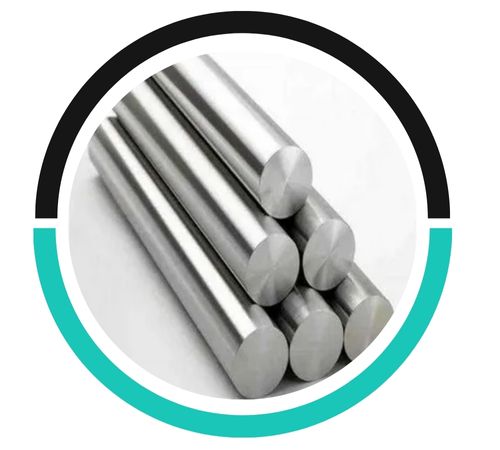

| Surface | Polished, Cold Drawn, Hot Rolled Pickled, Sand Blasting Finished, Bright, Hairline |
|
Grade |
Fe |
Si |
C |
S |
Ni |
Mn |
Mg |
Cu |
Ti |
|---|---|---|---|---|---|---|---|---|---|
|
Nickel 201 |
0.4 max |
0.2 max |
0.02 max |
0.01 max |
99.0 min |
0.35 max |
0.15 max |
0.25 max |
0.1 max |
|
Density |
Elongation |
Tensile Strength |
Melting Point |
Yield Strength (0.2%Offset) |
|---|---|---|---|---|
|
8.9 g/cm3 |
45 % |
Psi – 67000 , MPa – 462 |
1446 °C (2635 °F) |
Psi – 21500 , MPa – 148 |
|
STANDARD |
UNS |
WERKSTOFF NR. |
AFNOR |
GOST |
BS |
JIS |
EN |
|---|---|---|---|---|---|---|---|
|
Nickel 201 |
N02201 |
2.4068 |
– |
НП-2 |
NA 12 |
NW 2201 |
NLC-Ni 99 |
Type | SIZES (Inches) | ISO Tolerance | SIZES (mm) |
|---|---|---|---|
Peeled and Polished | 1.50″ to 6.00″ | h11-DIN 1013 | 40.00 to 150.00 |
Cold Drawn and Ground | 5/6″ to 2.50″ | h9-h8-h11-h10 | 10.00 to 75.00 |
Cold Drawn and Polish | 1/8″ to 3.00″ | h9-h8-h11-h10 | 3.00 to 75.00 |
Peeled and Ground | 3/4″ to 2.00″ | h10-h9-h11 | 20.00 to 50.00 |
Cut to size on request (tolerance +2/-0 mm).
50.0 | 6.0 |
45.0 | 5.0 |
60.0 | 8.0 |
55.0 | 7.0 |
70.0 | 10.0 |
65.0 | 9.0 |
75.0 | 12.0 |
90.0 | 20.0 |
80.0 | 16.0 |
100.0 | 25.0 |
160.0 | 35.0 |
130.0 | 30.0 |
200.0 | 40.0 |
Yes, Nickel Alloy 201 rods can be welded using various welding techniques, including TIG and MIG welding.
Nickel Alloy 201 bars exhibit excellent corrosion resistance, high thermal conductivity, good mechanical properties, and outstanding weldability, especially in reducing environments.
Nickel Alloy 201 rods are available in various sizes, typically ranging from 1/8" to 3" in diameter, and come in finishes such as bright, polished, and cold drawn.
Nickel Alloy 201 bars and rods find their place in various industries, including chemical processing, electronics, marine, and power generation. Their ability to withstand caustic alkalis and acids makes them ideal for crafting equipment like heat exchangers, process vessels, caustic evaporators, and piping systems. Additionally, these bars and rods are widely utilized in battery components, electrical terminals, and marine hardware due to their excellent conductivity and corrosion resistance. Their non-magnetic properties and high purity make them a great fit for precision applications that demand long-lasting performance under harsh chemical and thermal conditions.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Sahil Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Riyadh, Saudi Arabia
