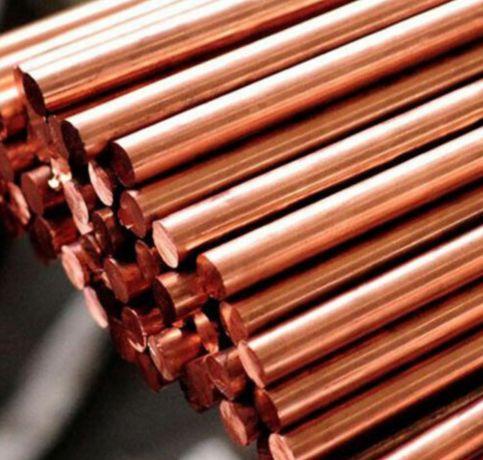

Sahil Metals, based in Riyadh, Saudi Arabia, has built a solid reputation as a reliable manufacturer and supplier of top-notch copper bars and rods. Renowned for their precision, durability, and commitment to international standards, Sahil Metals caters to a diverse array of industries, including electrical, plumbing, telecommunications, and manufacturing. By utilizing high-quality raw materials and cutting-edge production methods, the company guarantees that its copper bars and rods deliver outstanding conductivity, corrosion resistance, and mechanical strength. Sahil Metals is dedicated to offering dependable, cost-effective copper solutions tailored to the unique needs of clients across Saudi Arabia and the broader Middle East.
When it comes to composition, copper bars and rods are primarily made from high-purity copper, usually exceeding 99.9%, with small amounts of other elements depending on the specific grade. They boast excellent electrical and thermal conductivity, typically above 97% IACS. In terms of mechanical properties, you can expect tensile strength ranging from 210 to 350 MPa and yield strength between 33 to 120 MPa, along with elongation values of 30-50%. These bars are not only ductile but also resistant to corrosion and easy to machine, making them perfect for a wide range of industrial and electrical applications.
| Specifications | ASTM B187, ASTM B301 / ASME SB187, SB301 |
| Range | 3.17 MM TO 350 MM DIA |

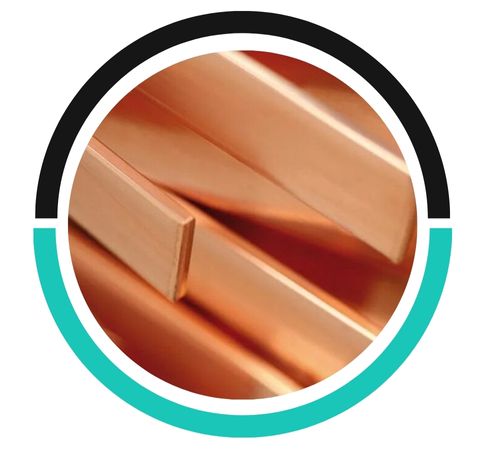

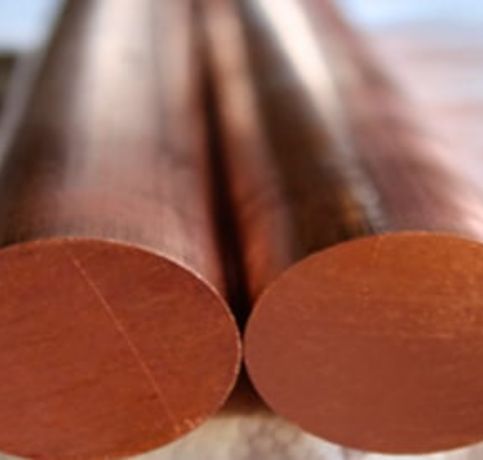

| Form | Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc. |
| Material | Copper |
| ETP GRADE | |
|---|---|

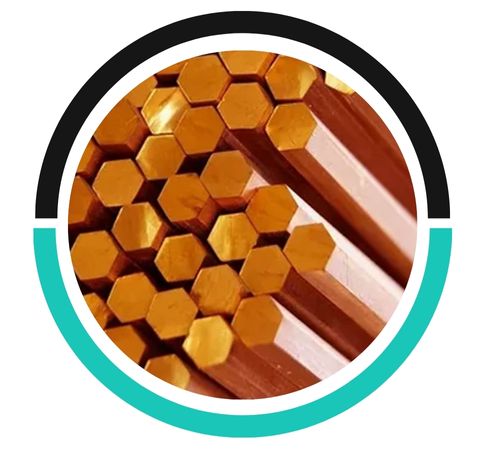

| Copper Hex Bar | ø 8 mm to 110 mm |

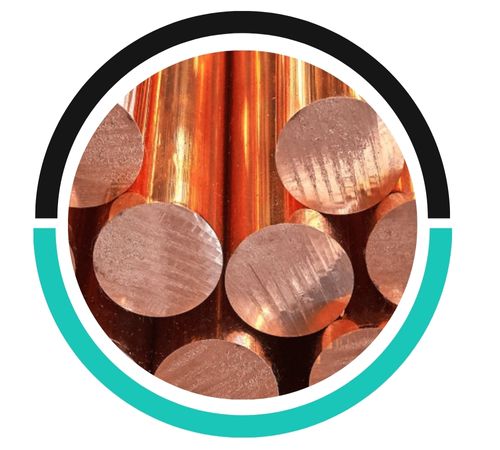

| Copper Round | ø 7 mm to 120 mm |

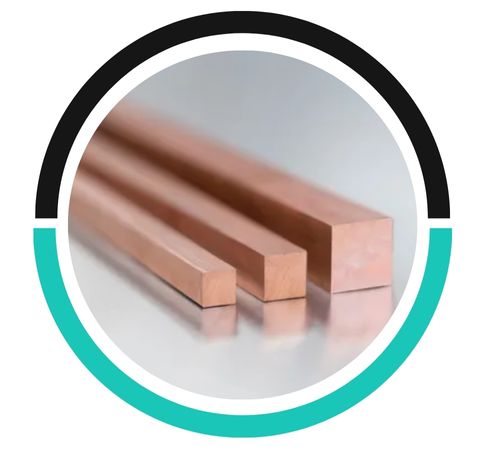

| Copper Square Bar | 10*10 mm to 90*90 mm |
| Electrical Conductivity: – (% IACS) | 98.5% min |
| Standards | BS EN 13601:2013, IS: 191, 1897 & 613 |
| Specifications | Cu : 99.90%, 02<400ppm |
| Copper Round Rod C101 | |
|---|---|
| 6.3mm (1/4″) | 38.1mm (1 1/2″) |
| 9.5mm (3/8″) | 30mm |
| 12.7mm (1/2″) | 25.4mm (1″) |
| 12mm | 25mm |
| 10mm | 20mm |
| 16mm | 19mm (3/4 |
| Diameter in mm | Weight in Kg/m |
|---|---|
| 8 | 0,447 |
| 6 | 0,252 |
| 9,5 | 0,631 |
| 12 | 1,007 |
| 11 | 0,846 |
| 60 | 25,164 |
| 12,5 | 1,092 |
| 14 | 1,370 |
| 42 | 12,330 |
| 13 | 1,181 |
| 70 | 34,251 |
| 16 | 1,789 |
| 80 | 44,736 |
| 38 | 10,094 |
| 35 | 8,563 |
| 50 | 17,475 |
| 40 | 11,184 |
| 20 | 2,796 |
| 19 | 2,523 |
| 22 | 3,383 |
| 28 | 5,480 |
| 30 | 6,291 |
| 25 | 4,369 |
| 32 | 7,158 |
| 45 | 14,155 |
| Molecular Weight | 63.55 |
|---|---|
| Boiling Point | 2567 °C |
| Melting Point | 1083.4 °C |
| Density | 8.96 g/cm3 |
| Electrical Resistivity | 1.678 microhm-cm @ 20 °C |
| Appearance | Reddish Metal |
| Young’s Modulus | 110–128 GPa |
| Solubility in H2O | N/A |
| Heat of Fusion | 3.11 Cal/gm mole |
| Electronegativity | 1.9 Paulings |
| Poisson’s Ratio | 0.34 |
| Heat of Vaporization | 72.8 K-cal/gm atom at 2567 °C |
| Tensile Strength | N/A |
| Specific Heat | 0.092 Cal/g/K @ 25 °C |
| Thermal Expansion | (25 °C) 16.5 µm·m-1·K-1 |
| Thermal Conductivity | 4.01 W/cm/K @ 298.2 K |
| Vickers Hardness | 369 MPa |
Yes, Copper Bars and Rods can be susceptible to galvanic corrosion when in contact with dissimilar metals, particularly in the presence of moisture or electrolytes. Proper insulation helps prevent this.
Yes, Copper Bars and Rods are fully recyclable. The material retains its properties after recycling, making it an eco-friendly choice for sustainable industrial applications and reducing environmental impact.
Yes, Copper Bars and Rods can be used for natural gas applications. They offer excellent corrosion resistance and conductivity, making them suitable for gas systems, provided they are properly maintained.
Copper bars and rods find extensive use in electrical wiring, connectors, busbars, and switchgear components, thanks to their superior conductivity and durability. They’re also crucial in plumbing systems, heat exchangers, and the manufacturing of industrial machinery parts. With their excellent corrosion resistance and thermal performance, they’re ideal for HVAC systems, telecommunications, and the electronics industry. Copper bars and rods deliver reliable and efficient solutions for applications that demand high conductivity, strength, and longevity.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
