Sahil Metals stands out as a top manufacturer and supplier in Riyadh, Saudi Arabia, known for its high-quality steel products, including Carbon Steel EN-8 Bars. These bars are well-regarded for their medium strength, impressive toughness, and outstanding wear resistance, making them ideal for tough engineering and industrial tasks. At Sahil Metals, every product is crafted with durability, precision, and adherence to international quality standards, catering to sectors like automotive, construction, oil & gas, and general engineering. With a strong focus on performance and customer satisfaction, the company delivers Carbon Steel EN-8 Bars that promise reliability, versatility, and lasting value throughout Saudi Arabia.
Carbon Steel EN-8 Bars primarily consist of carbon (0.35–0.45%) and manganese (0.60–1.00%), along with trace amounts of silicon, sulfur, and phosphorus. This medium carbon steel boasts a tensile strength between 550–850 MPa and a yield strength of about 280–500 MPa, depending on the heat treatment process. It offers good machinability, hardness, and wear resistance while maintaining moderate ductility. While EN-8 Bars aren’t particularly resistant to corrosion, their performance can be enhanced with surface protection or coatings, making them suitable for mechanical and structural uses.
| Grades | EN 8, EN 19, EN 24, EN 31 |
| Dimensions | EN, DIN, JIS, ASTM, BS, ASME, AISI |

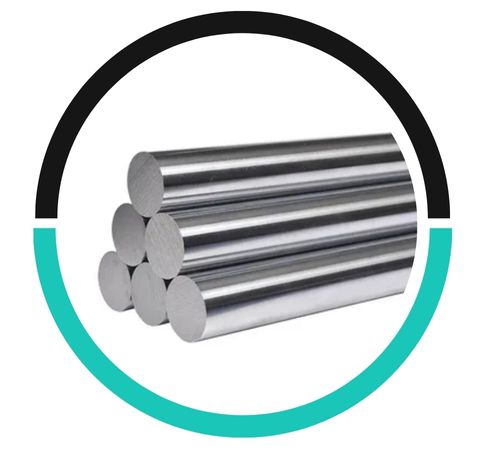

| Carbon Steel EN Series Round Bars | 3.0 – 50.8 mm, Over 50.8 – 300mm |
| Carbon Steel EN Series Rectangular Bars | 6.35 x 12.7mm,6.35 x 25.4mm,12.7 x 25.4mm |
| Carbon Steel EN Series Hex Bars | AF5.8mm–17mm |

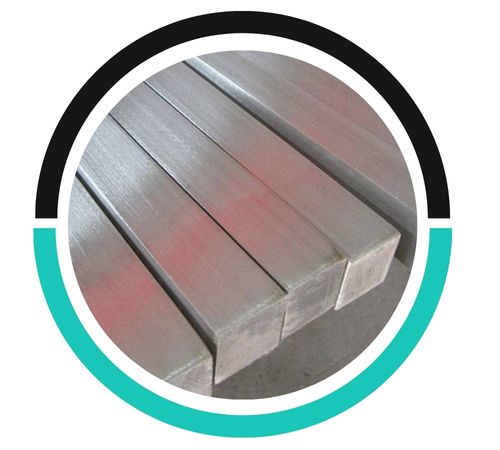

| Carbon Steel EN Series Square Bars | AF2mm – 14mm, AF6.35mm,9.5mm,12.7mm, 15.98mm,19.0mm, 25.4mm |
| Carbon Steel EN Series Flat Bars | 1/2” to 10” in thickness range of 2mm to 150mm |
| Length | 1 to 6 Meters, Custom Cut Lengths |
| Finish | Bright, Polish & Black |
| Form | Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc. |
| Grade | ||||||
| C% | Si% | Mn% | Cr% | Mo% | W% | |
| EN-1A | 0.007 TO 0.15 | 0.10 | 0.80 TO 1.00 | S | P | – |
| 0.20 TO 0.30 | 0.70 MAX | |||||
| EN-8 | 0.35 TO 0.45 | 0.05 TO 0.30 | 0.60 TO 1.00 | S | P | – |
| 0.06 MAX | 0.06 MAX | |||||
| EN-9 | 0.50 TO 0.60 | 0.05 TO 0.30 | 0.5 TO 0.80 | – | – | – |
| EN-19(V 320) | 0.35 TO 0.45 | 0.10 TO 0.30 | 0.5 TO 0.80 | 0.90 TO 1.40 | 0.20 TO 0.40 | |
| EN-24(V 130) | 0.35 TO 0.45 | 0.10 TO 0.35 | 0.45 TO 0.70 | 0.90 TO 1.40 | 0.20 TO 0.35 | NI |
| 1.3 TO 1.8 | ||||||
| EN-31 R-100 | 0.90 TO 1.20 | 0.10 TO 0.35 | 0.30 TO 0.75 | 1.00 TO 1.60 | – | – |
| EN-36C E-200 | 0.12 TO 0.18 | 0.10 TO 0.35 | 0.30 TO 0.60 | 0.60 TO 1.10 | – | NI |
| 3.0 TO 3.75 | ||||||
| EN-42 | 0.70 TO 0.85 | 0.10 TO 0.40 | 0.55 TO 0.75 | – | – | – |
| EN-44 | 0.90 TO 1.20 | 0.30 | 0.45 TO 0.70 | – | – | – |
| EN-45 F-110 | 50 TO 0.60 | 1.5 TO 2.0 | 0.70 TO 1.00 | – | – | – |
| EN-351 | 0.10 TO 0.20 | 0.35 | 0.60 TO 1.00 | 0.40 to 0.80 | 0.08 to 0.10 | NI |
| 0.60 TO 1.00 | ||||||
| EN-353 | 0.10 TO 0.20 | 0.35 | 0.50 TO 1.00 | 0.75 TO 1.25 | 0.08 to o.15 | NI |
| 1.00 TO 1.50 |
| Annealed | R | S | T | U | V | W | Y | |
|---|---|---|---|---|---|---|---|---|
| Ruling Section (mm) | 150 | 150 | 100 | 65 | 65 | 30 | 30 | 25 |
| Tensile Strength (MPa) | 680/720 | 690/850 | 770/930 | 850/1000 | 930/1080 | 1000/1160 | 1080/1240 | 1280 |
| Yield Stress (MPa) | 440/480 | 480 | 570 | 665 | 740 | 835 | 895 | 1050 |
| Elongation (% Min) | 22 | 15 | 15 | 13 | 12 | 12 | 10 | 10 |
| ISO V Impact (Joule) | 30 | 30 | 30 | 30 | 25 | 25 | 22 | 7 |
| Hardness (Brinell) | 190/210 | 201/255 | 223/277 | 248/302 | 269/321 | 293/341 | 311/375 | 363/415 |
| Proof Stress (0.2%) if required (MPa, Min) | 495 | 550 | 630 | 710 | 770 | 850 | 985 |
| Standard | CS EN-19 |
| UNS | – |
| WERKSTOFF NR. | 42Cr4Mo2 |
| BS | 709M40 |
| IS | 40Cr4Mo3 |
| JIS | – |
| EN | EN19 |
| SAE/AISI | 4140,4142 |
They offer high tensile strength, wear resistance, and excellent machinability, making them suitable for demanding applications.
They are widely used in automotive, engineering, and heavy machinery industries for components like gears, shafts, and bolts.
These Carbon Steel EN-8 Bars find extensive application in automotive components like shafts, axles, crankshafts, gears, and bolts, thanks to their remarkable strength and wear resistance. They’re also utilized in parts for industrial machinery, spindles, studs, and various engineering applications that demand toughness and durability. Furthermore, these bars are perfect for construction, oilfield equipment, and heavy-duty tools where medium strength and machinability are crucial. Their combination of hardness, wear resistance, and overall performance makes Carbon Steel EN-8 Bars a go-to choice across multiple industries.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
