Sahil Metals stands out as a leading manufacturer and supplier of Alloy 20 Round Bars in Riyadh, Saudi Arabia. They specialize in high-performance nickel–iron–chromium alloy solutions that are crafted for exceptional corrosion resistance. Known as Carpenter 20, Alloy 20 is particularly prized in chemical and industrial settings due to its remarkable resistance to sulfuric acid and other harsh substances. Sahil Metals is committed to precision engineering, upholding strict quality standards, and tailoring specifications to fit a variety of customer needs. With its durability, strength, and long-lasting performance, Alloy 20 round bars find extensive use in the petrochemical, pharmaceutical, food processing, and marine industries for critical applications.
Alloy 20 Round Bars are made up of roughly 32–38% nickel, 19–21% chromium, 3–4% copper, 2–3% molybdenum, ≤1% manganese, ≤1% silicon, ≤0.07% carbon, along with small amounts of niobium and iron to balance the composition. This unique blend provides outstanding resistance to stress corrosion cracking, pitting, and acid attack. On the mechanical side, Alloy 20 boasts a tensile strength of about 620 MPa, a yield strength of around 300 MPa, elongation rates of 30–35%, and a Brinell hardness close to 217 HB. Its combination of toughness, ductility, and corrosion resistance makes it ideal for demanding industrial environments.
Alloy 20 Round Bar Specification : ASTM B473 , ASME SB473
Dimension Standard : EN, DIN, JIS, ASTM, BS, ASME, AISI
Size : 14mm-300mm
Thickness : 50 mm to 6000 mm Long
Length : 1 To 6 Meters, Custom Cut Length

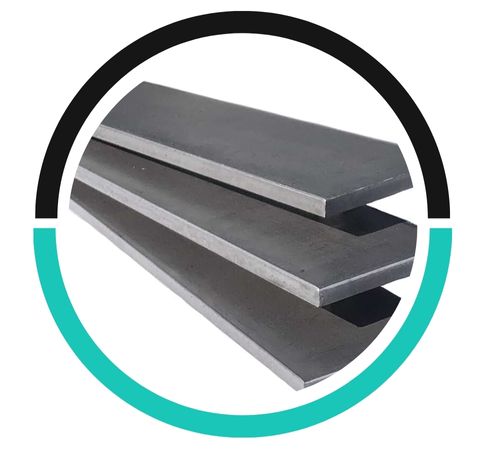

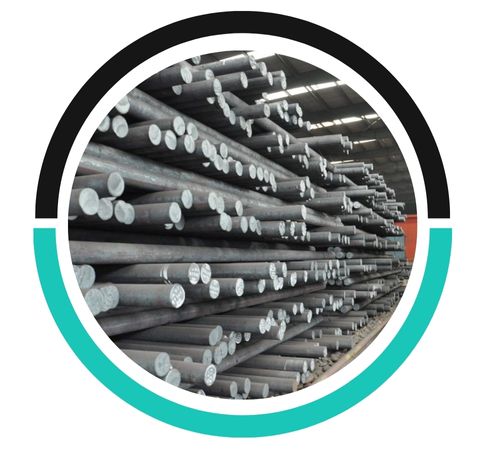

Form : Round, Square, Hex(A/F), Rectangle, Billet, Ingot, Forging Etc.
| Grade | C | Mn | Si | S | Cu | Ni | Cr | Fe | Mo | P |
|---|---|---|---|---|---|---|---|---|---|---|
| Alloy 20 | 0.07 max | 2.00 max | 1.00 max | 0.035 max | 3.00 – 4.00 | 32.00 – 38.00 | 19.00 – 21.00 | 29.85 min* | 2.00 – 3.00 | 0.045 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|---|
| Alloy 20 | 8.1 g/cm3 | 1443 °C (2430 °F) | Psi -80,000, MPa -551 | Psi – 35,000, MPa – 241 | 30 % |
| STANDARD | UNS | WNR. | EN | AFNOR |
|---|---|---|---|---|
| Alloy 20 | N08020 | 2.4660 | NiCr20CuMo | Z2NCUD31-20AZ |
Type | SIZES (mm) | ISO Tolerance | SIZES (Inches) |
|---|---|---|---|

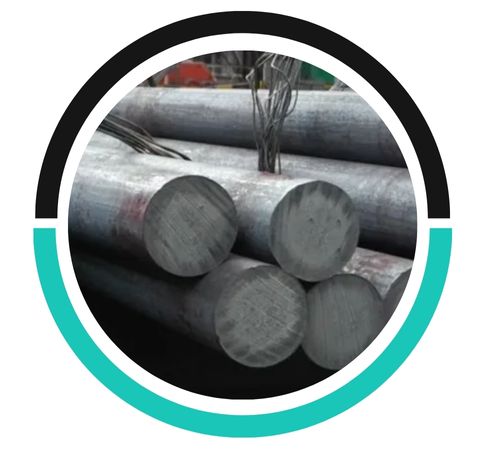

Peeled and Polished | 40.00 to 150.00 | h11-DIN 1013 | 1.50″ to 6.00″ |
Cold Drawn and Ground | 10.00 to 75.00 | h9-h8-h11-h10 | 5/6″ to 2.50″ |
Cold Drawn and Polish | 3.00 to 75.00 | h9-h8-h11-h10 | 1/8″ to 3.00″ |
Peeled and Ground | 20.00 to 50.00 | h10-h9-h11 | 3/4″ to 2.00″ |
Cut to size on request (tolerance +2/-0 mm). Standard lengths of Alloy 20 Bars 2000 mm up to 6000 mm available
50.0 | 6.0 |
65.0 | 9.0 |
55.0 | 7.0 |
45.0 | 5.0 |
70.0 | 10.0 |
60.0 | 8.0 |
75.0 | 12.0 |
90.0 | 20.0 |
80.0 | 16.0 |
130.0 | 30.0 |
100.0 | 25.0 |
160.0 | 35.0 |
120.0 | 40.0 |
Choose the right Alloy 20 Round Bar based on factors like corrosion resistance, strength requirements, and compatibility with your specific application environment.
The pressure rating of Alloy 20 Round Bar depends on factors such as size, temperature, and specific application conditions, typically determined through engineering calculations.
Yes, Alloy 20 Round Bar can be welded, offering excellent weldability with proper techniques.
Alloy 20 Round Bars are a go-to choice in the chemical and petrochemical sectors, especially for equipment that has to withstand tough acids like sulfuric, phosphoric, and nitric acids. You’ll find them commonly used in making heat exchangers, storage tanks, pumps, piping systems, and reactor vessels. But their versatility doesn’t stop there; they’re also essential in the food and beverage industry, marine applications, and pharmaceutical equipment, where both corrosion resistance and hygiene are top priorities. Plus, their remarkable strength and durability make them perfect for the power generation and gas processing industries, ensuring they perform reliably even in the most challenging environments.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
