Sahil Metals, based in Riyadh, Saudi Arabia, has made a name for itself as a top-notch manufacturer and supplier of high-quality Monel K500 Forgings. Renowned for their precision and durability, these nickel-copper alloy products are crafted to thrive in tough industrial settings. Monel K500 Forgings blend the impressive corrosion resistance of Monel 400 with added strength and hardness, thanks to the incorporation of aluminum and titanium for age-hardening. This combination makes them incredibly reliable in sectors like marine, oil and gas, aerospace, and chemical processing. With cutting-edge manufacturing methods and a commitment to international standards, Sahil Metals guarantees dependable, high-performance Monel K500 Forgings for critical applications.
Monel K500 is a nickel-copper alloy that contains roughly 63% nickel and 27–30% copper, along with aluminum and titanium for precipitation hardening. This alloy boasts a high tensile strength of about 965 MPa, a yield strength of 690 MPa, and an elongation of 20–30%. It excels in resisting seawater, acids, and alkalis, all while maintaining toughness and dimensional stability over a broad temperature range. Monel K500 Forgings also show remarkable fatigue and wear resistance, making them perfect for heavy-duty applications that face both mechanical stress and corrosive conditions.
Specifications ASTM B564 / ASME SB564
Flat bar blocks up to 27″ width and 15,000 lbs.
Cylinders and sleeves up to 50″ maximum O.D. and 65″ maximum length
Discs and hubs up to 50″ diameter and 20,000 lbs.
Rolled, hand forged or mandrel forged rings up to 84″ maximum O.D. and 40″ maximum length
Rounds, shafts and step shafts up to 144″ maximum length and 20,000 lbs.
Grades Monel K500 Forging UNS (N05500), DIN (2.4375)
BS3072 NA18, QQ-N-286, DIN 17750, ISO 6208
AMS 4676, BS3076 NA18, ASTM B 865, DIN 17752, QQ-N-286, ISO 9723
AMS 4676, ISO 6208, ASTM B 865, DIN 17752, QQ-N-286
BS3076, NA18, DIN 17753, QQ-N-286, ISO 9724
DIN 17754, QQ-N-286, ISO 9725
UNS N05500, BS6076 NA13, Werkstoff Nr. 2.4375, MIL-N-24549, NACE MR-01-75
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Monel K500 | 0.25 max | 1.5 max | 0.5 max | 0.010 max | 27.00 – 33.00 | 0.5 – 2 | 63.00 min |
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 8.44 g/cm3 | 1350 °C (2460 °F) | Psi – 115000 , MPa – 790 | Psi – 160000 , MPa – 1100 | 20 % |
| STANDARD | UNS | WNR. |
| Monel K500 | N05500 | 2.4375 |

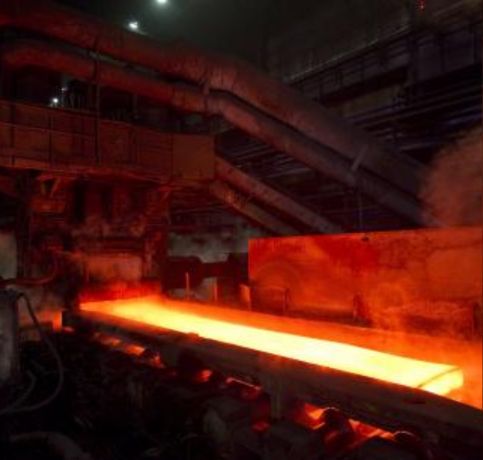

Temperature control during the forging of Monel K500 ensures optimal microstructure, improving strength, toughness, and corrosion resistance. It prevents defects like cracking and ensures consistent quality.
To improve the surface finish of forged Monel K500 parts, use techniques like polishing, grinding, or shot peening. Additionally, applying chemical treatments such as pickling can help remove oxides and enhance smoothness.
To determine if Monel K500 forgings meet your needs, evaluate their mechanical properties, corrosion resistance, and compliance with industry standards.
Monel K500 Forgings are widely used in applications requiring exceptional strength, corrosion resistance and durability. Common uses include marine and offshore environments, such as seawater pump components and propeller shafts, where resistance to corrosion and erosion is crucial. Additionally, it is employed in chemical processing equipment, valves and fasteners, as well as in aerospace for engine components and other high-stress parts. Monel K500’s resistance to fatigue and high temperatures makes it ideal for demanding applications in both industrial and specialized sectors.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Sahil Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Riyadh, Saudi Arabia
